Cobra Curved Root Rake

Cobra Curved Root Rake

Logo
  • Our curved root rakes are available for machines from 1.5 tonne right up to 25 tonne.
  • The curved design is perfect for land clearing, screening rock and tree work.
  • Designed to handle the uneven strain from large trees



Features

  • Double Pronged Tips

    400 Grade double pronged wear resistant tips to extend the life of the rake

    Note this is only currently on 12T & 20T models

  • Medium Tensile Body

    350 grade steel throughout the body

  • Rigid Design

    Handles the uneven stress of large trees and rocks

Cobra Curved Root Rake

Benefits

  • Free Freight

    To nearest depot around New Zealand

  • High Strength Wear Steel

    Wear plating allows it to withstand the most demanding stresses
  • 36 Month Warranty

    Built tough, backed by a 36-month warranty
  • Reinforced Design

    Proven strong design to handle the big jobs

Gallery

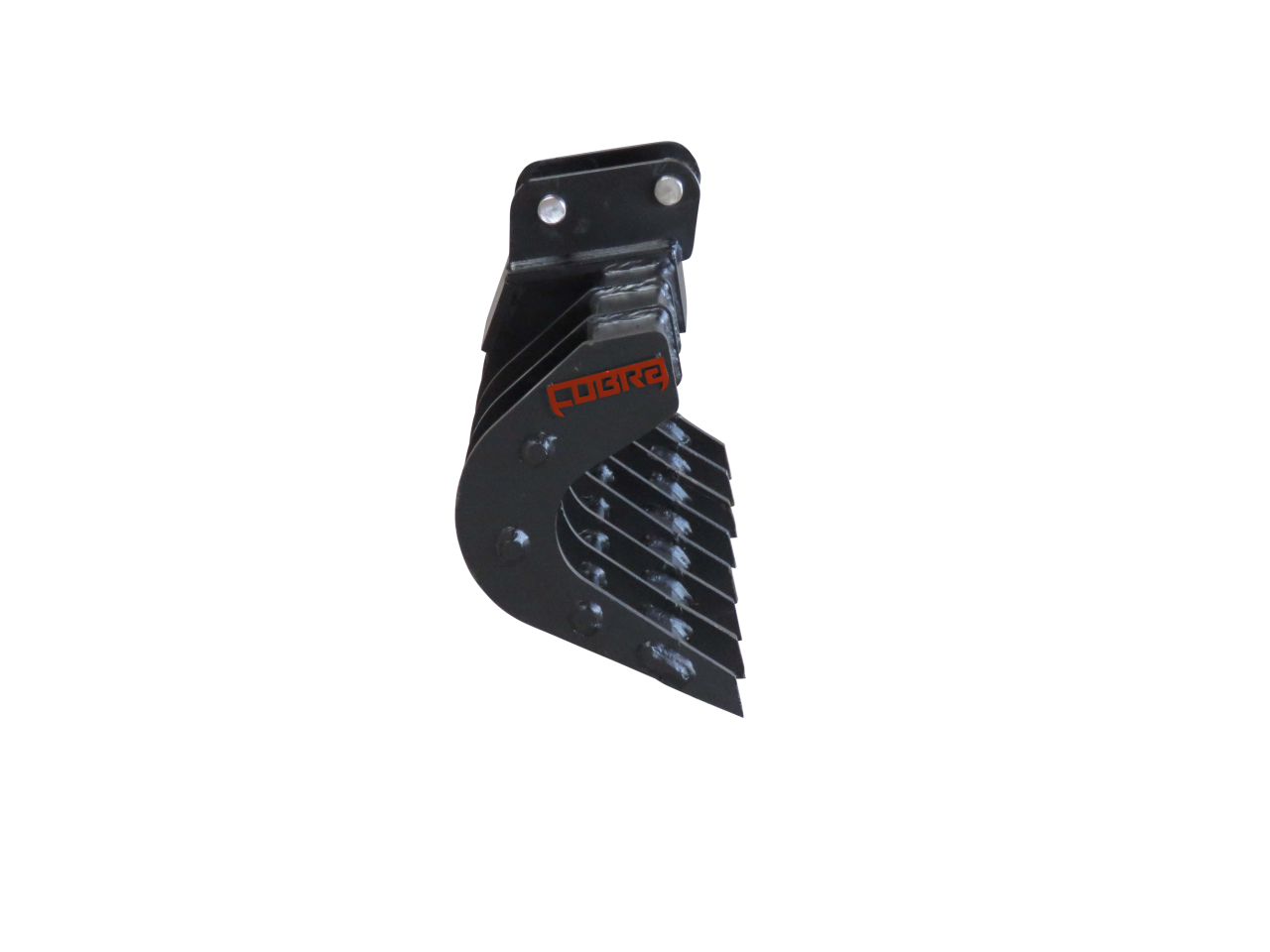

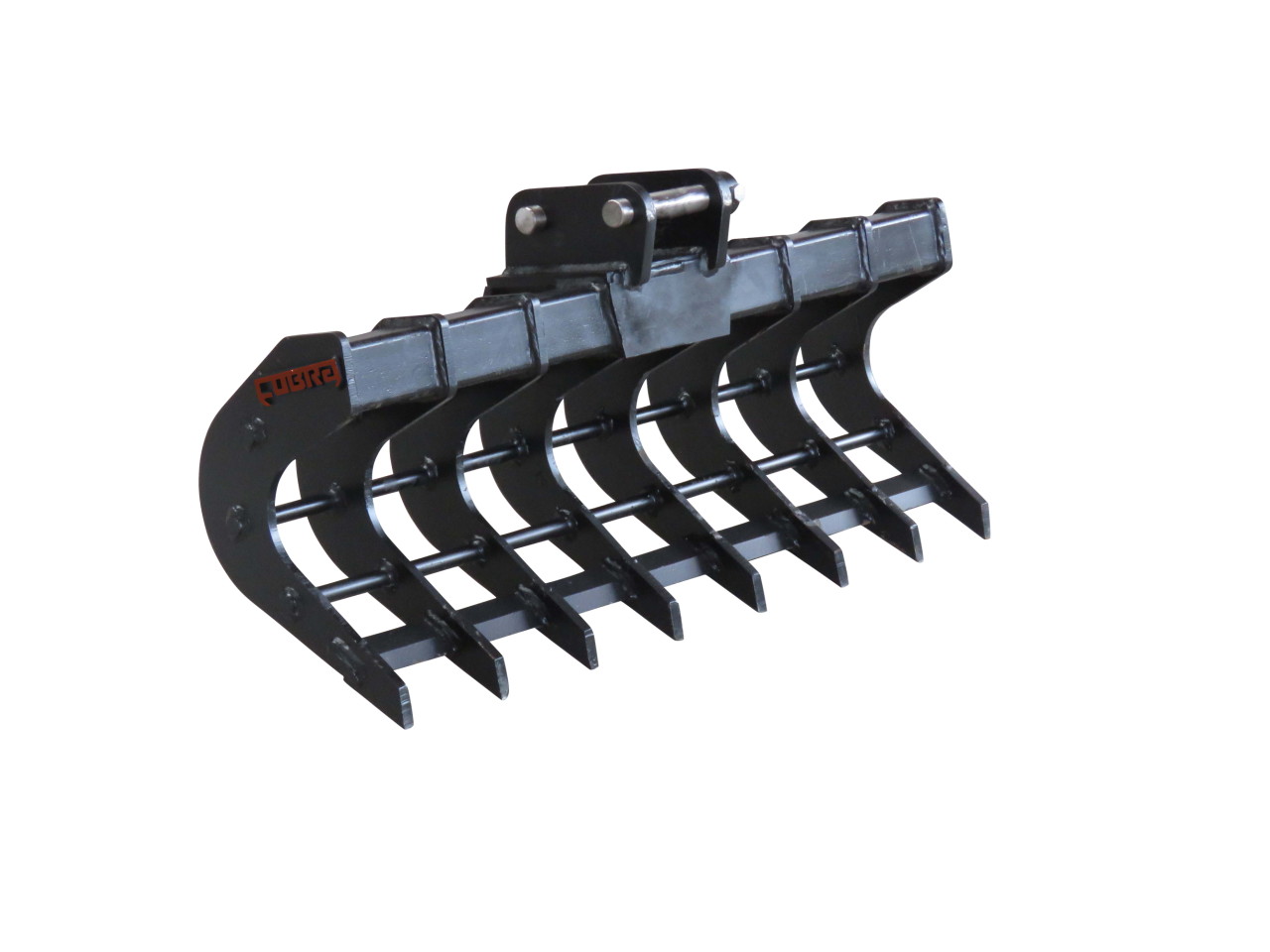

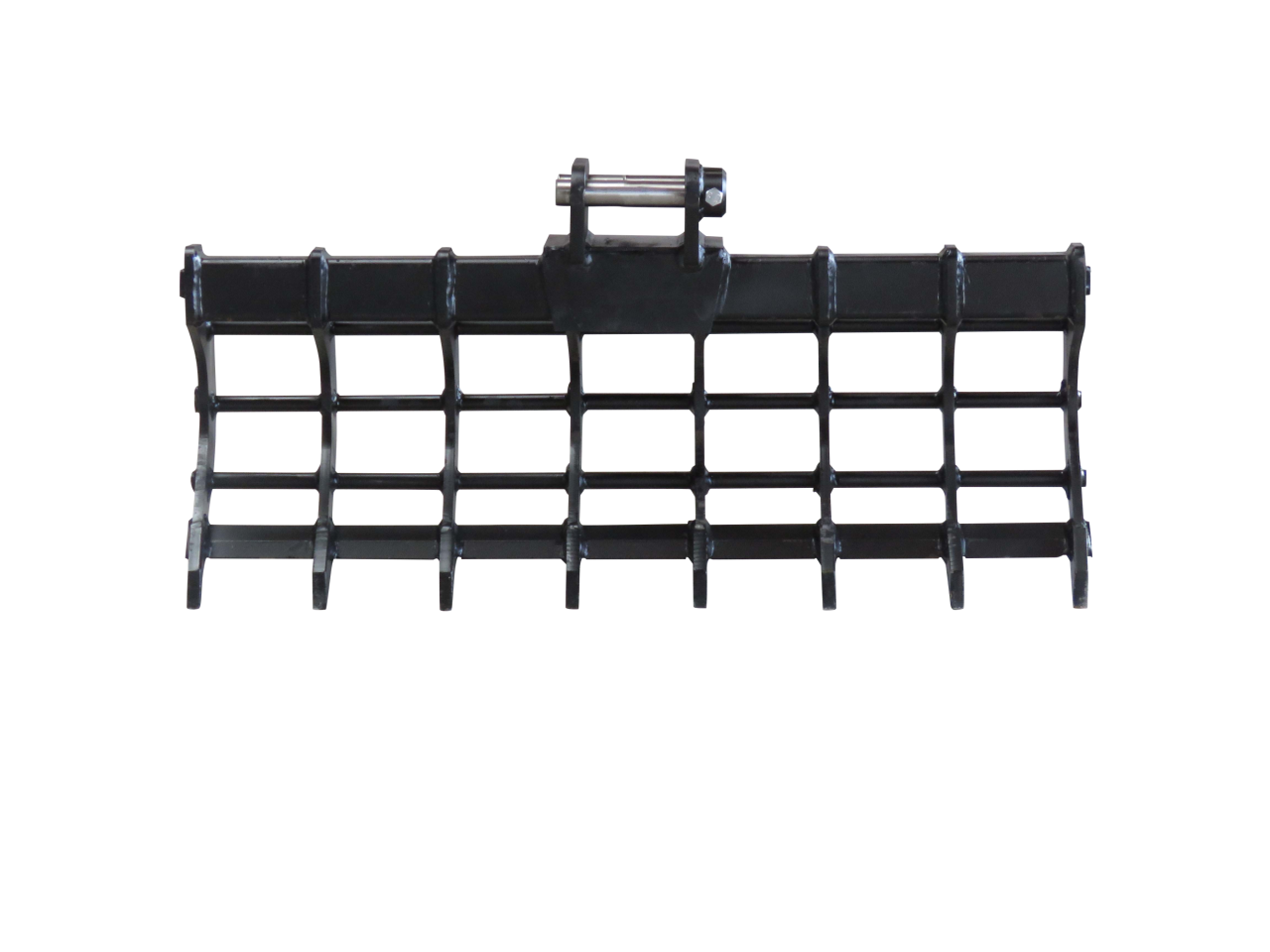

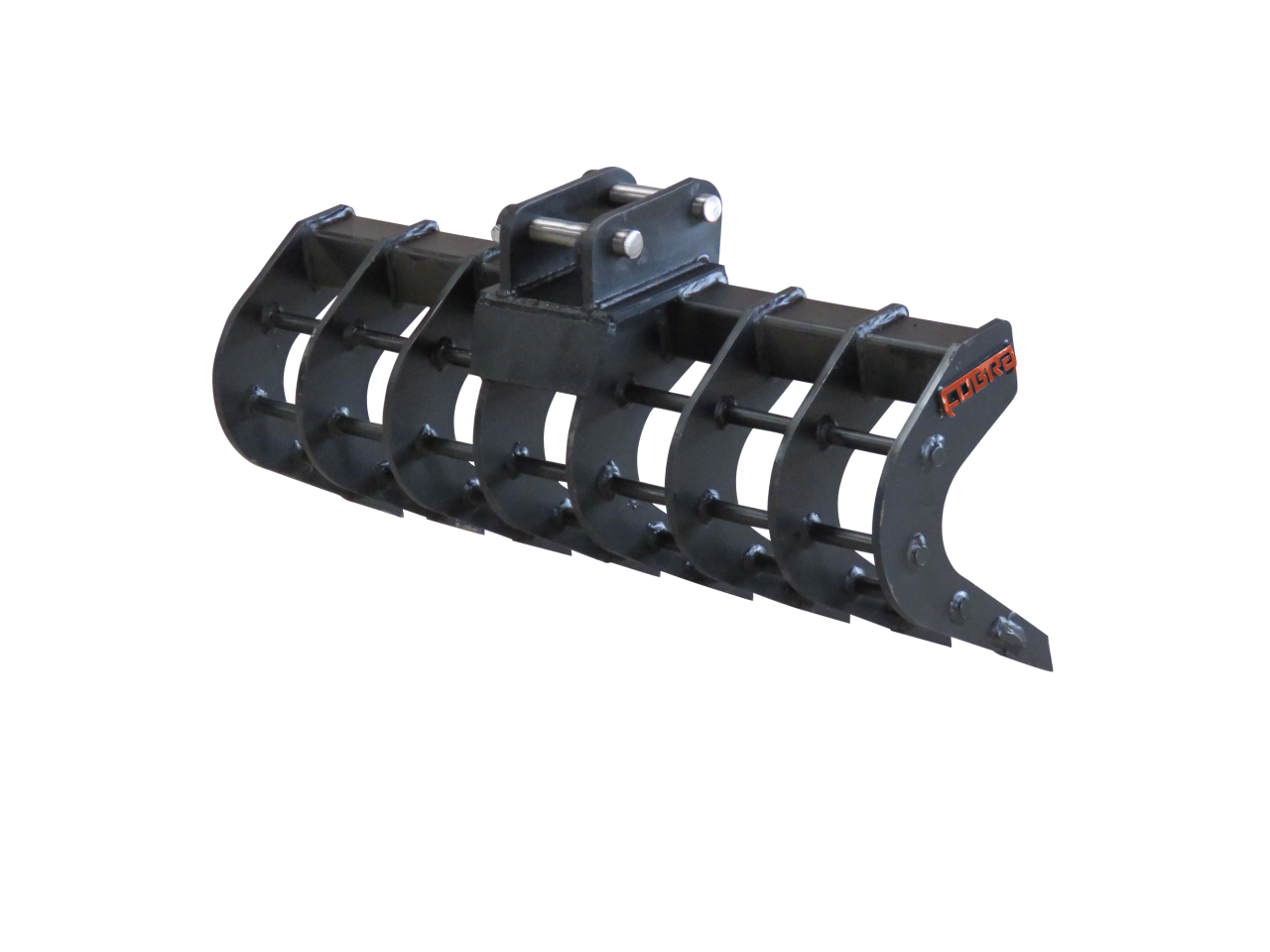

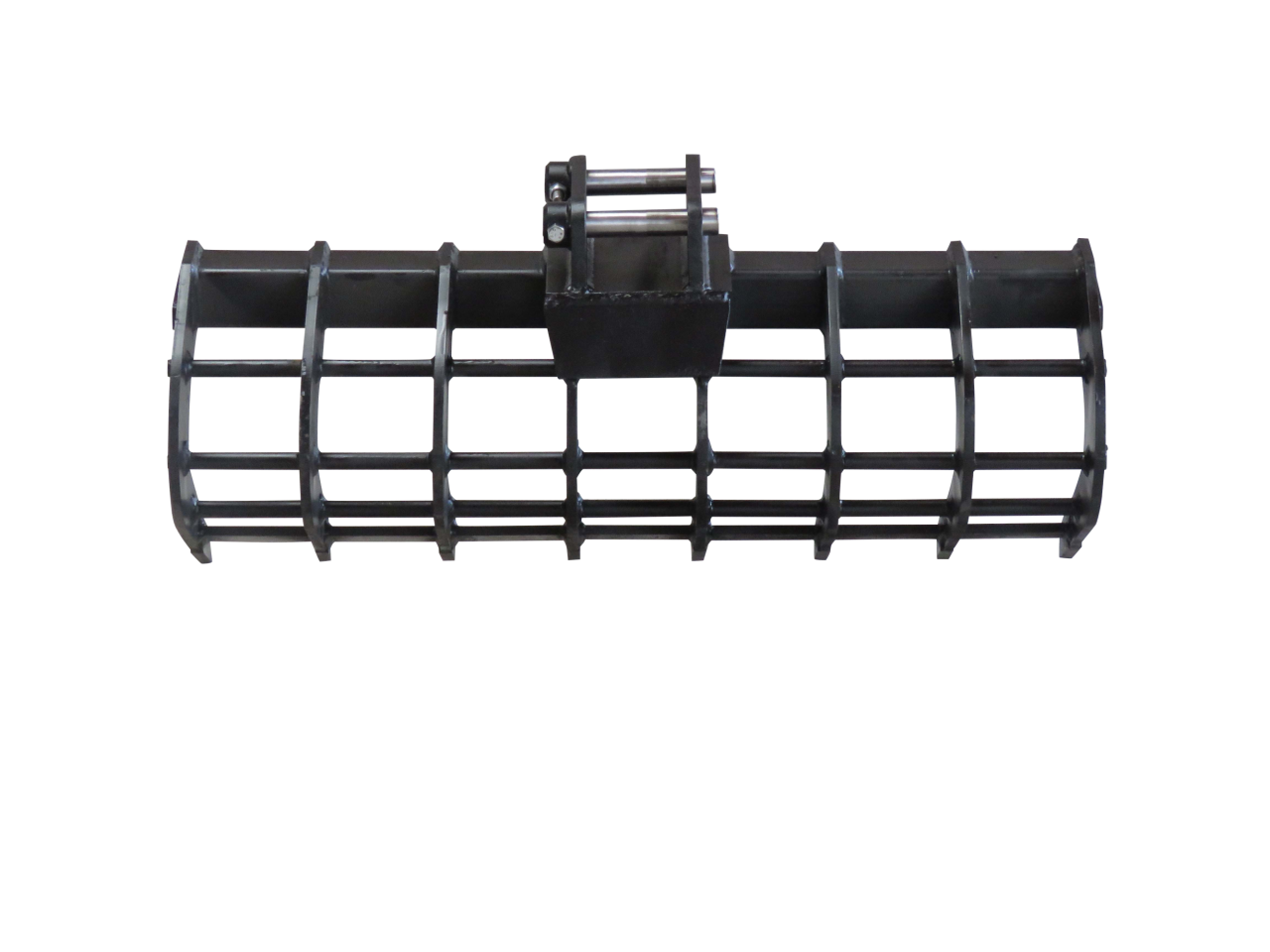

  • 1 v4.5 2.5T 1000mm Curved Root Rake FS copy 1.5 2.5T 1000mm Curved Root Rake F copy 1.5 2.5T 1000mm Curved Root Rake S copy 1.5 2.5T 1000mm Curved Root Rake RS copy 1.5 2.5T 1000mm Curved Root Rake R copy

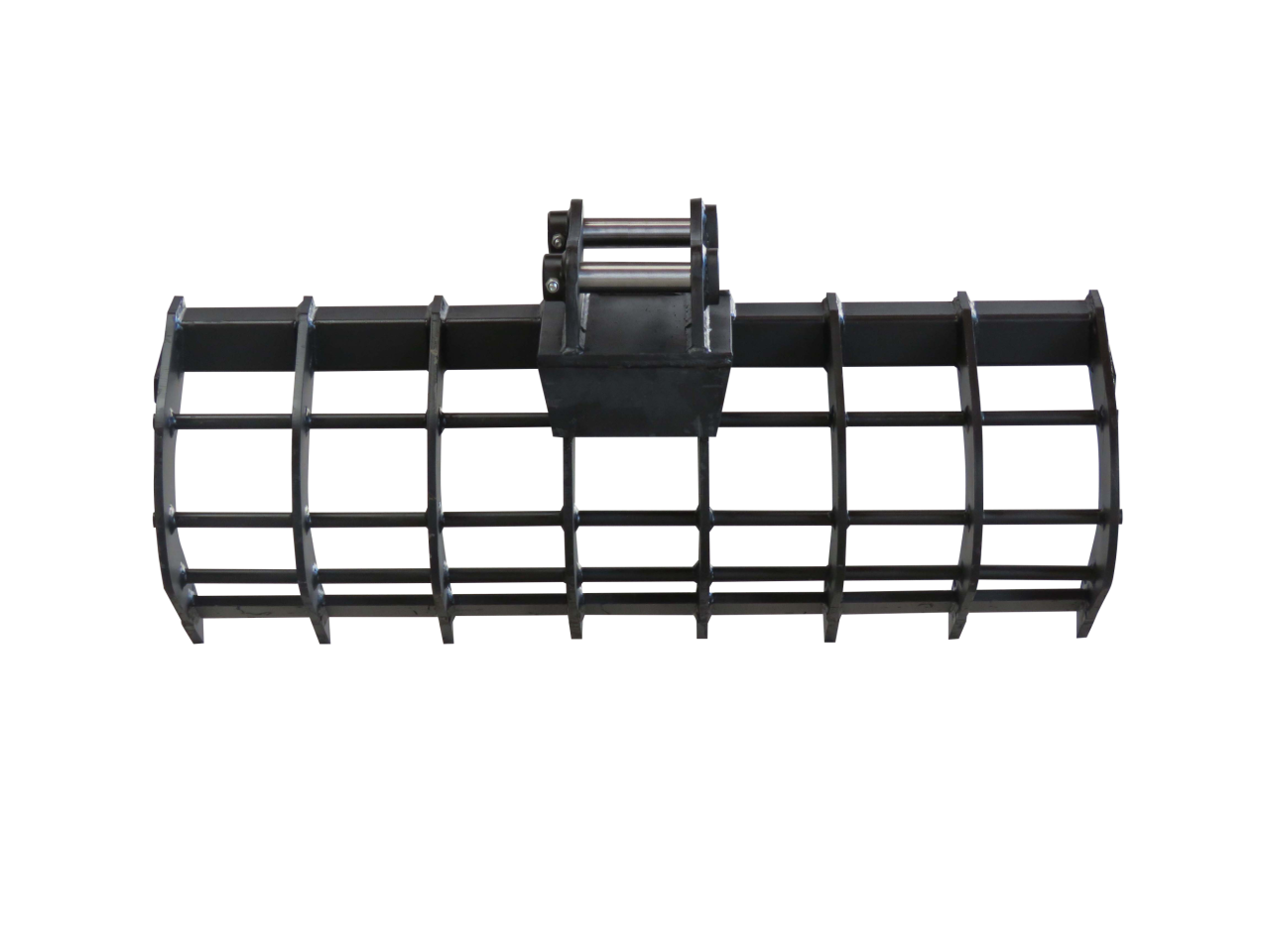

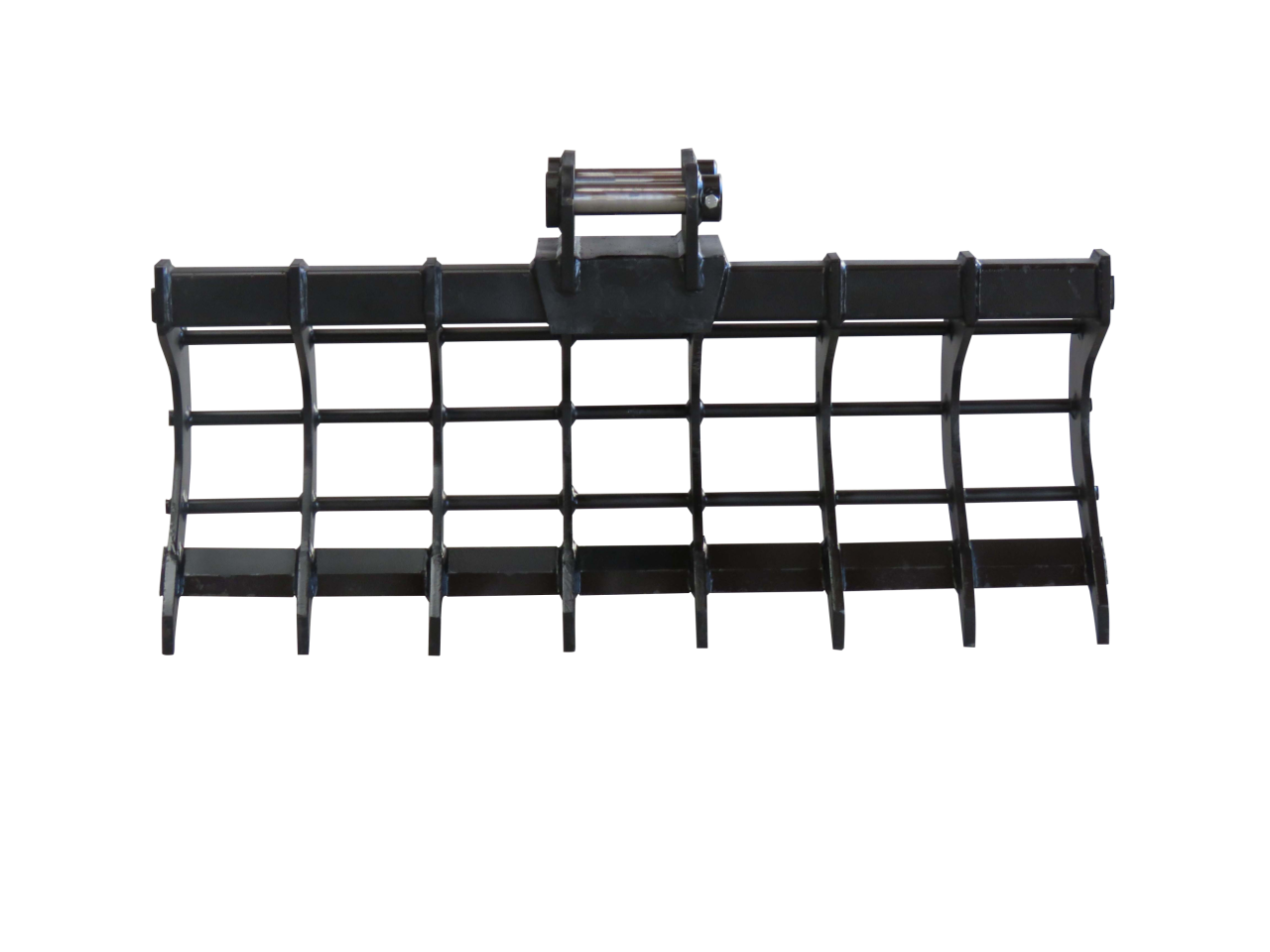

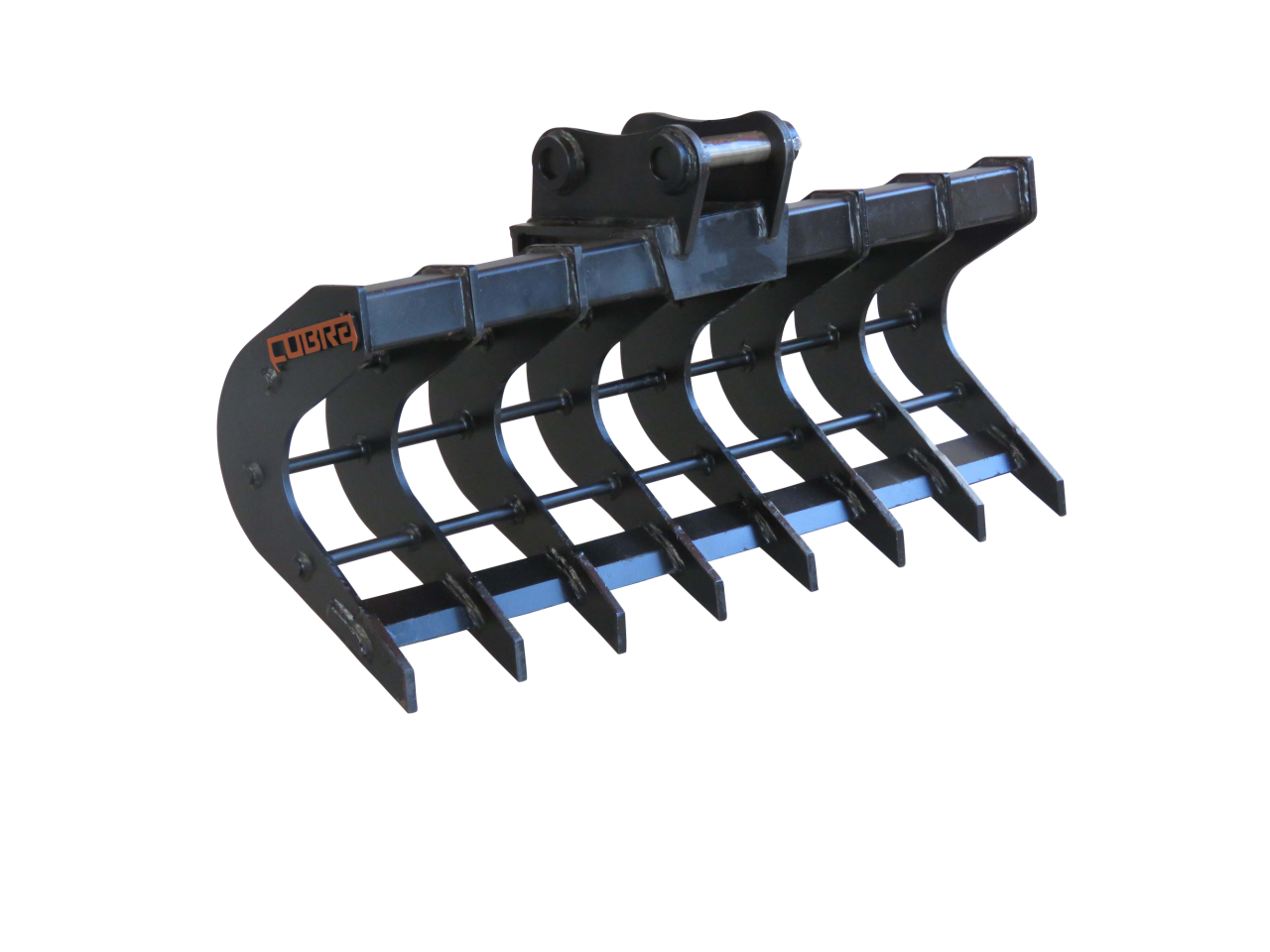

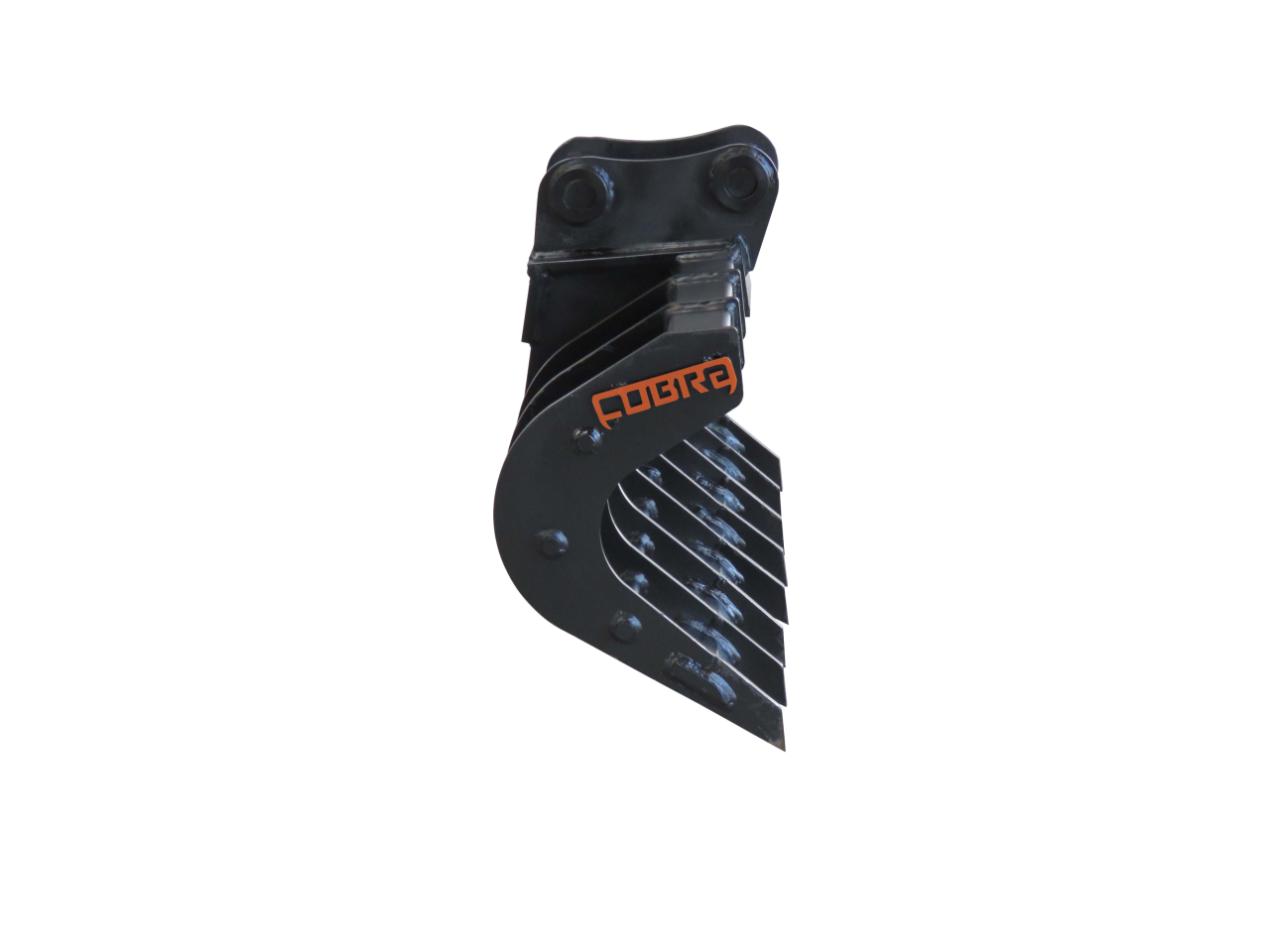

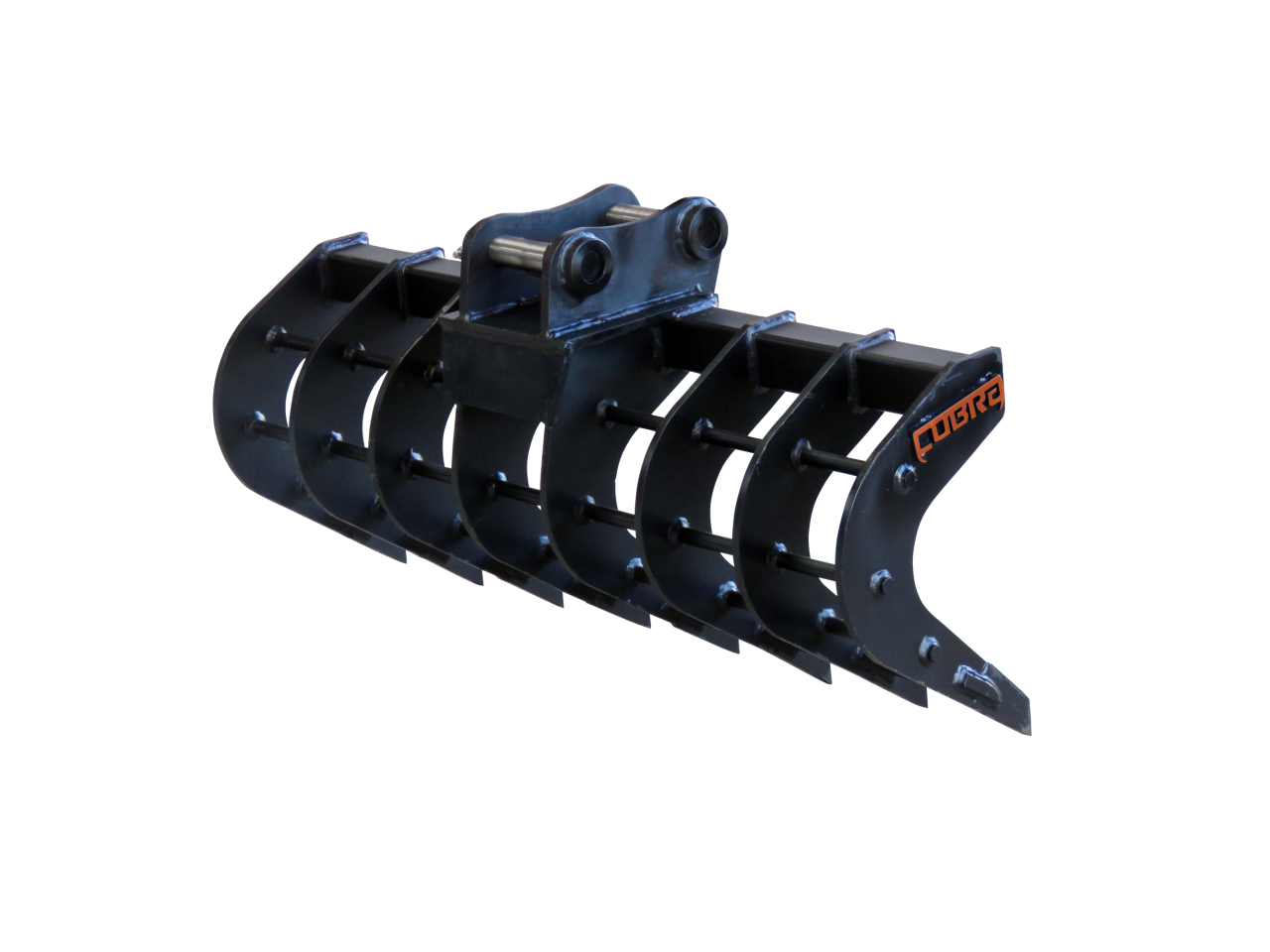

  • 2 v6.5 3.9T 1200mm Curved Root Rake FS copy 2.5 3.9T 1200mm Curved Root Rake F copy 2.5 3.9T 1200mm Curved Root Rake S copy 2.5 3.9T 1200mm Curved Root Rake RS copy 2.5 3.9T 1200mm Curved Root Rake R copy

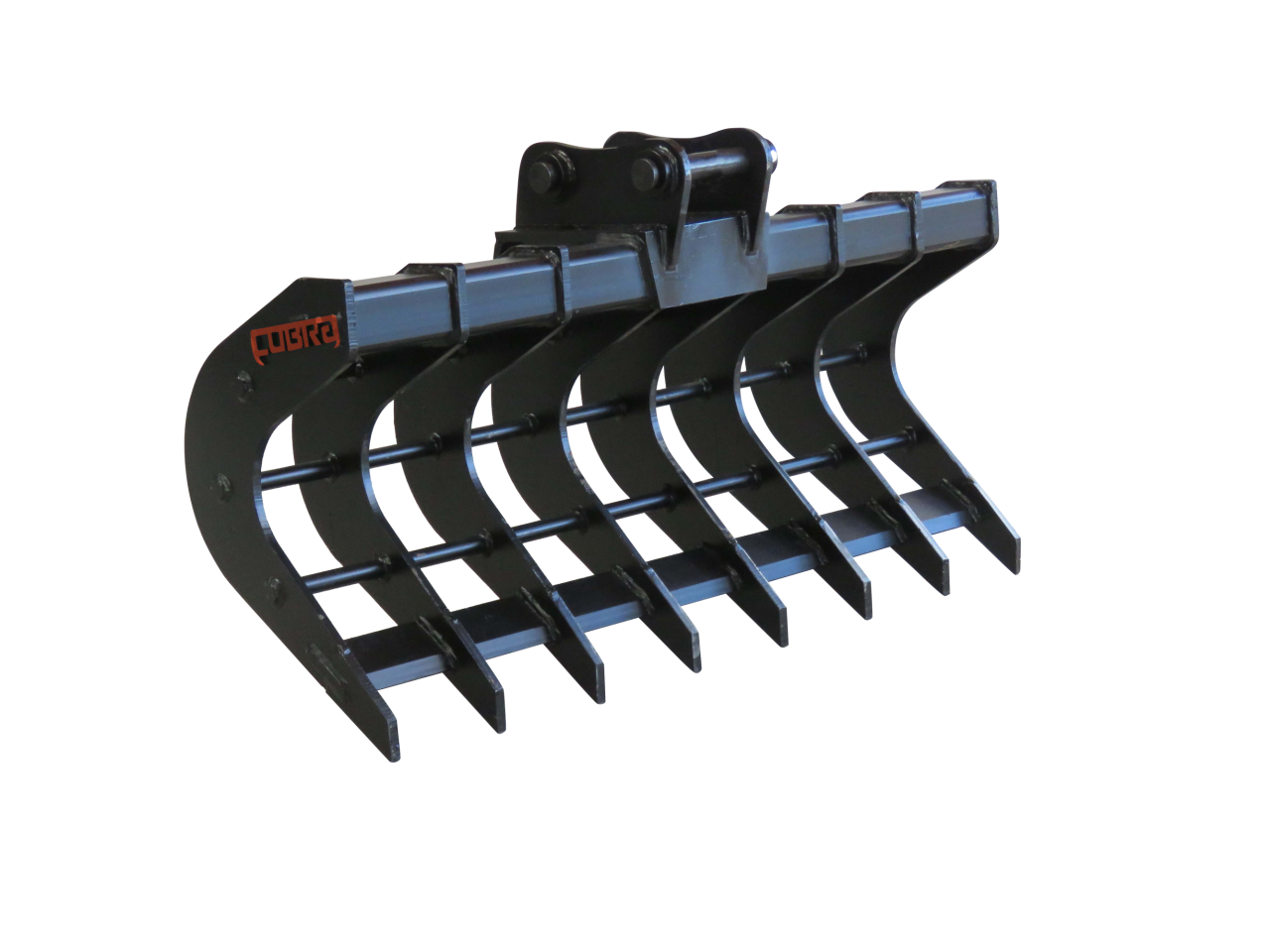

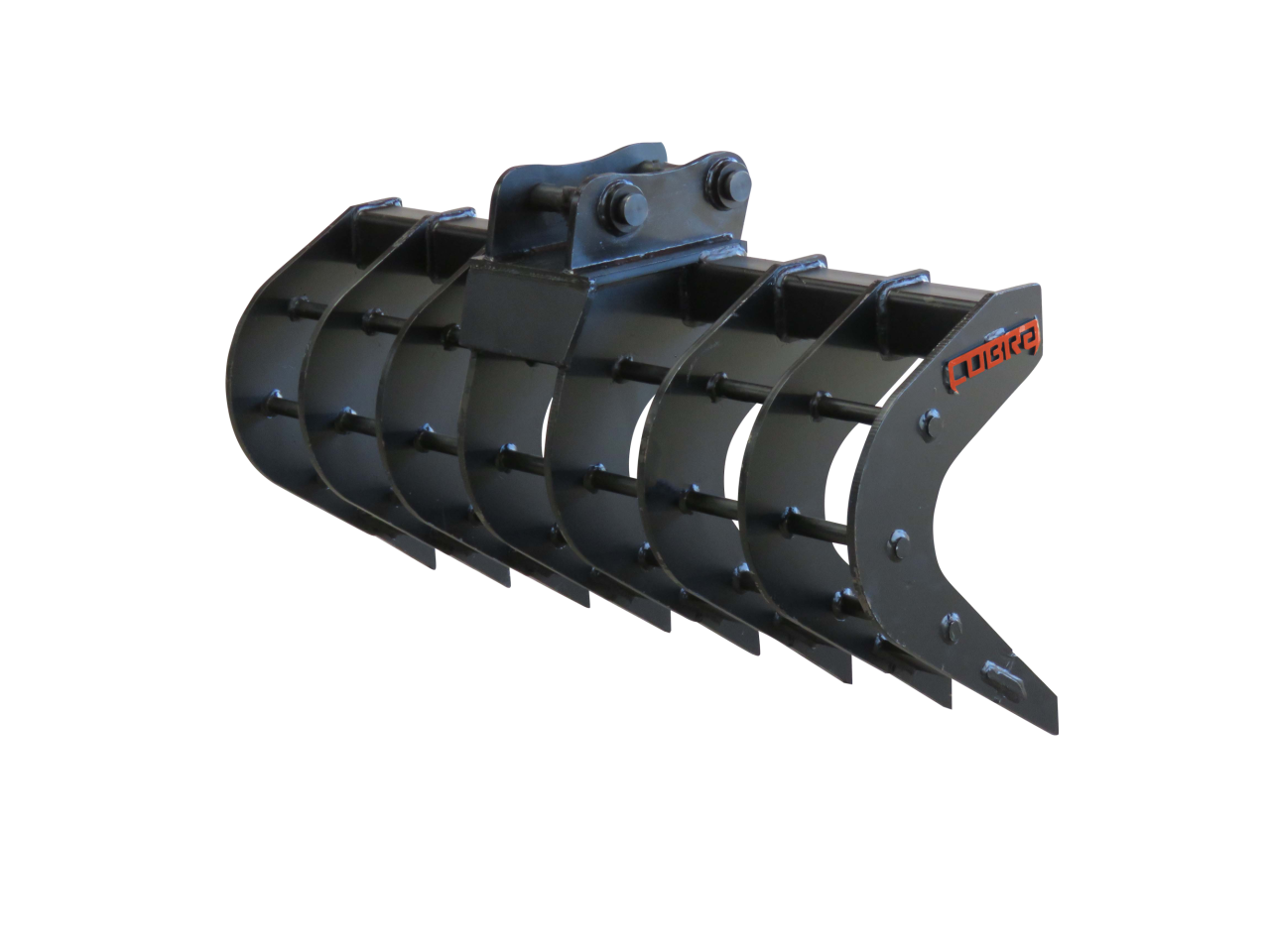

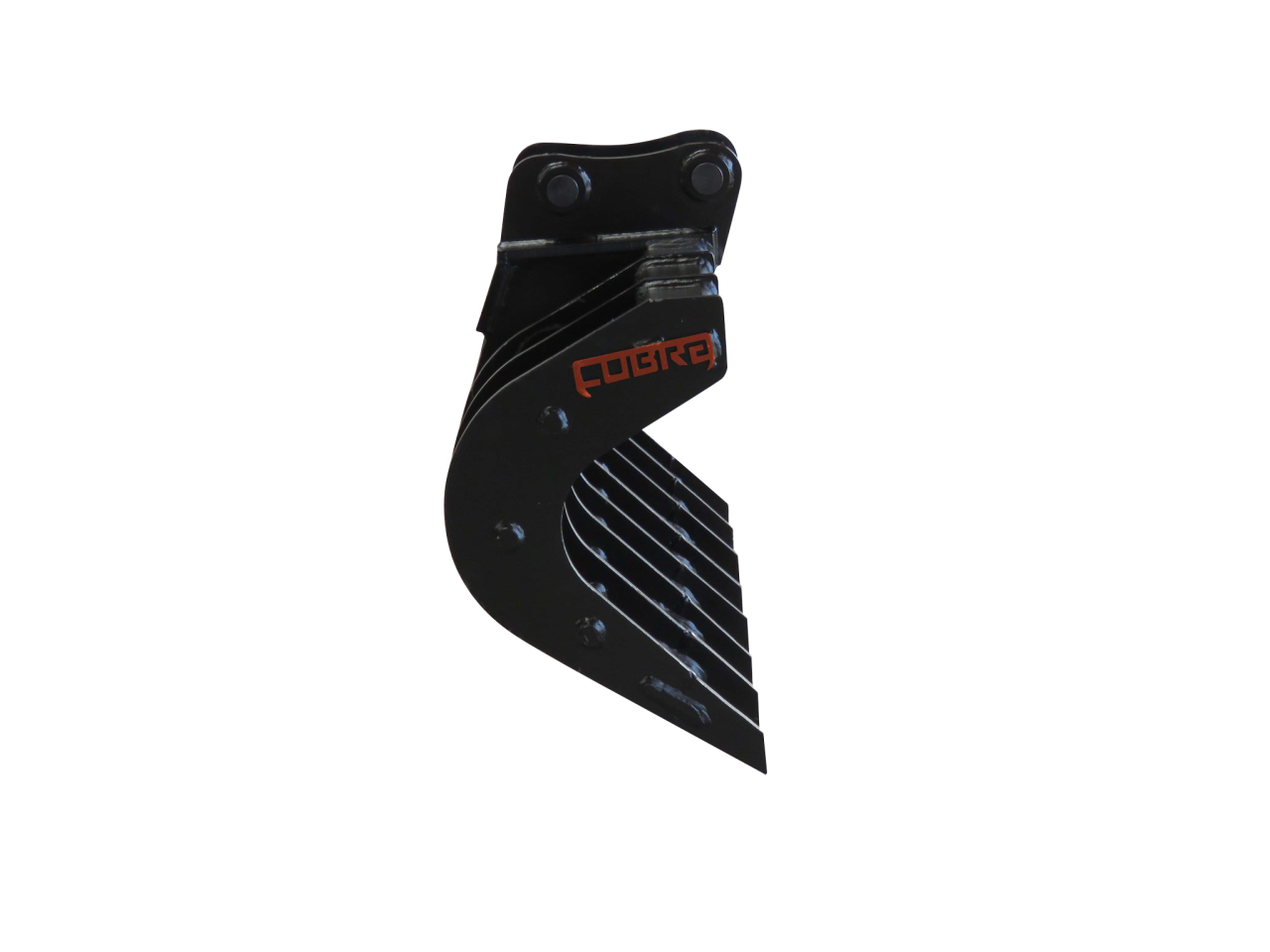

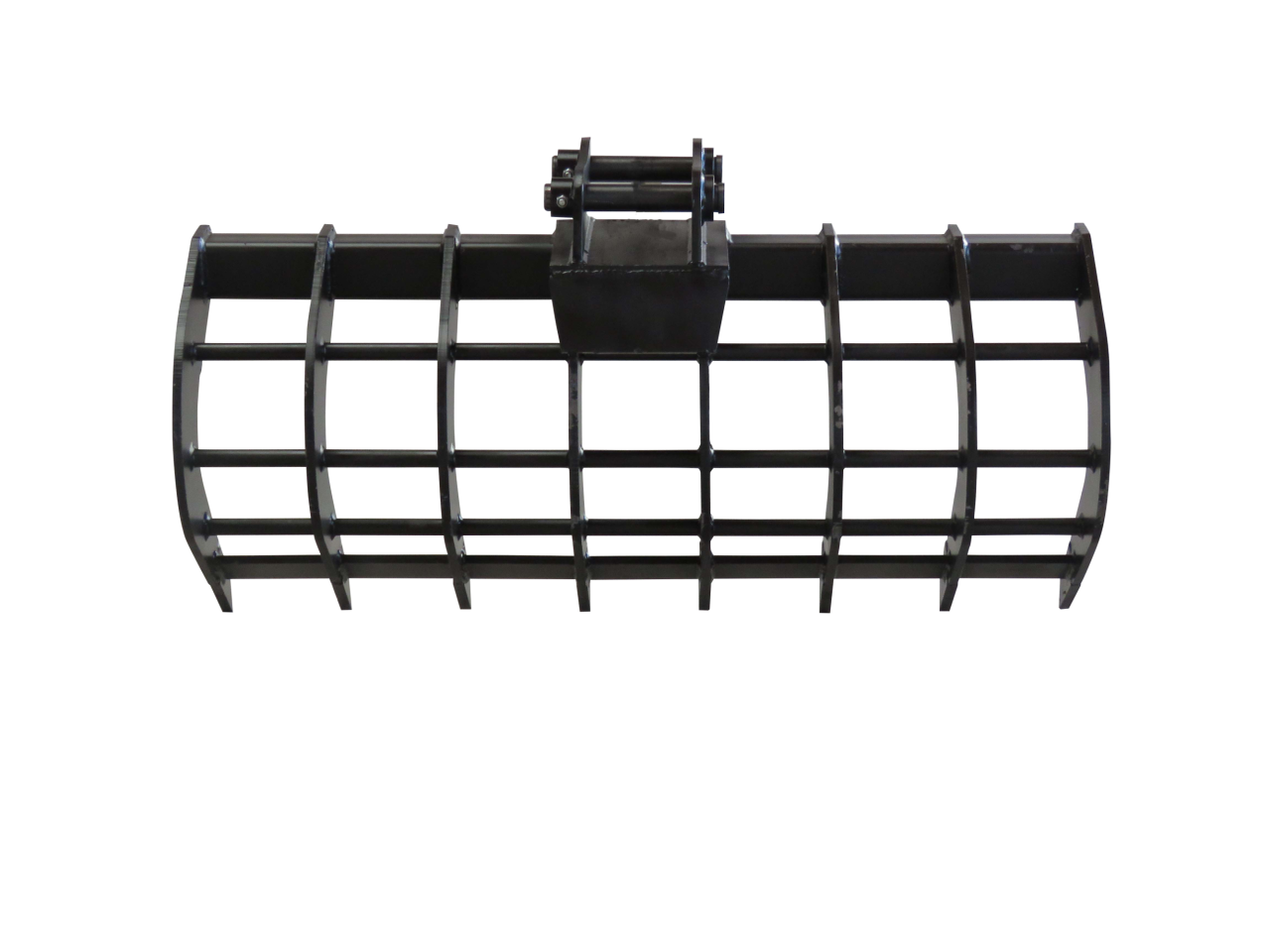

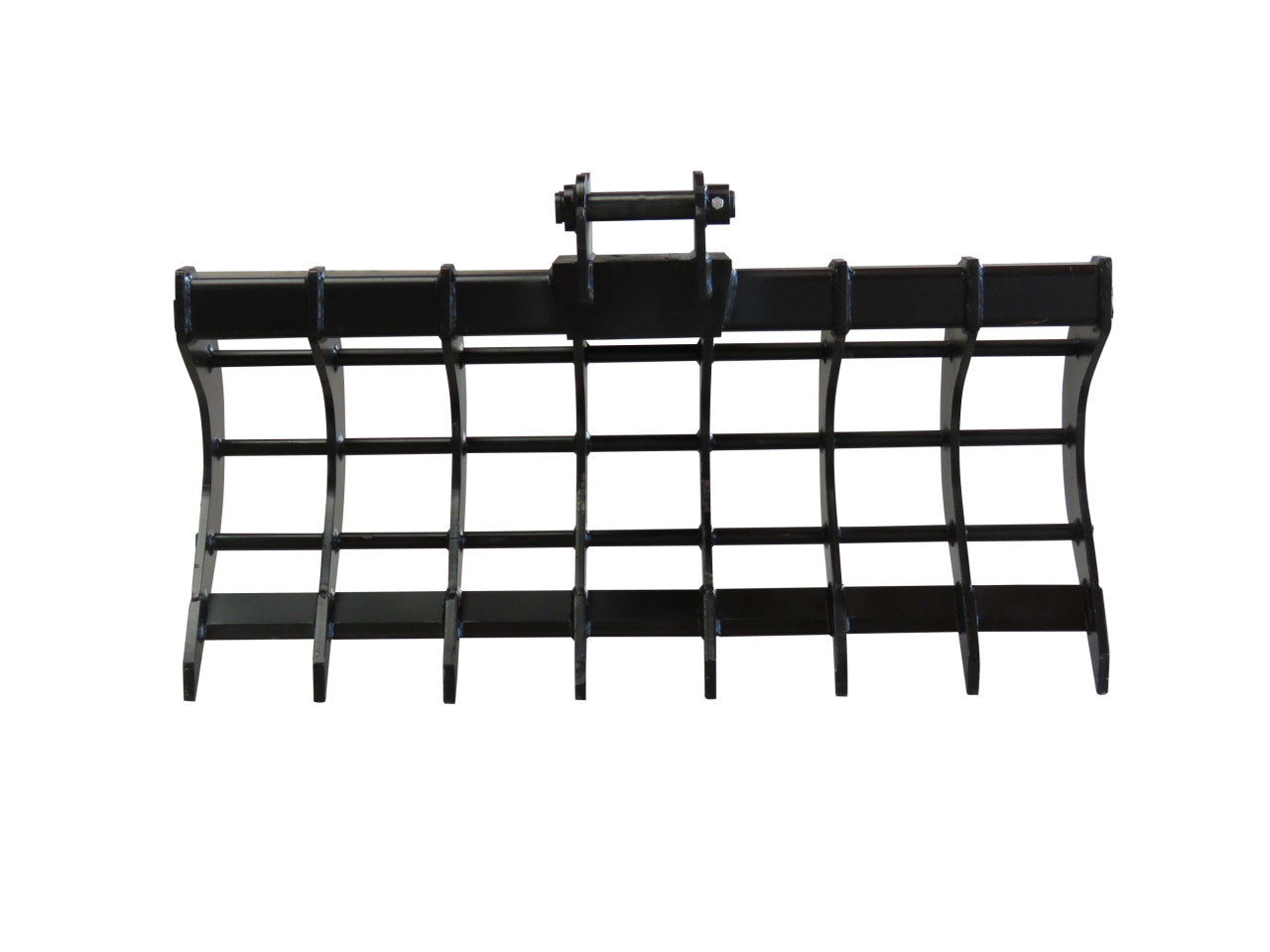

  • 4 6T 1500mm Curved Root Rake FS copy v2 4 6T 1500mm Curved Root Rake F copy 4 6T 1500mm Curved Root Rake S copy 4 6T 1500mm Curved Root Rake RS copy 4 6T 1500mm Curved Root Rake R copy

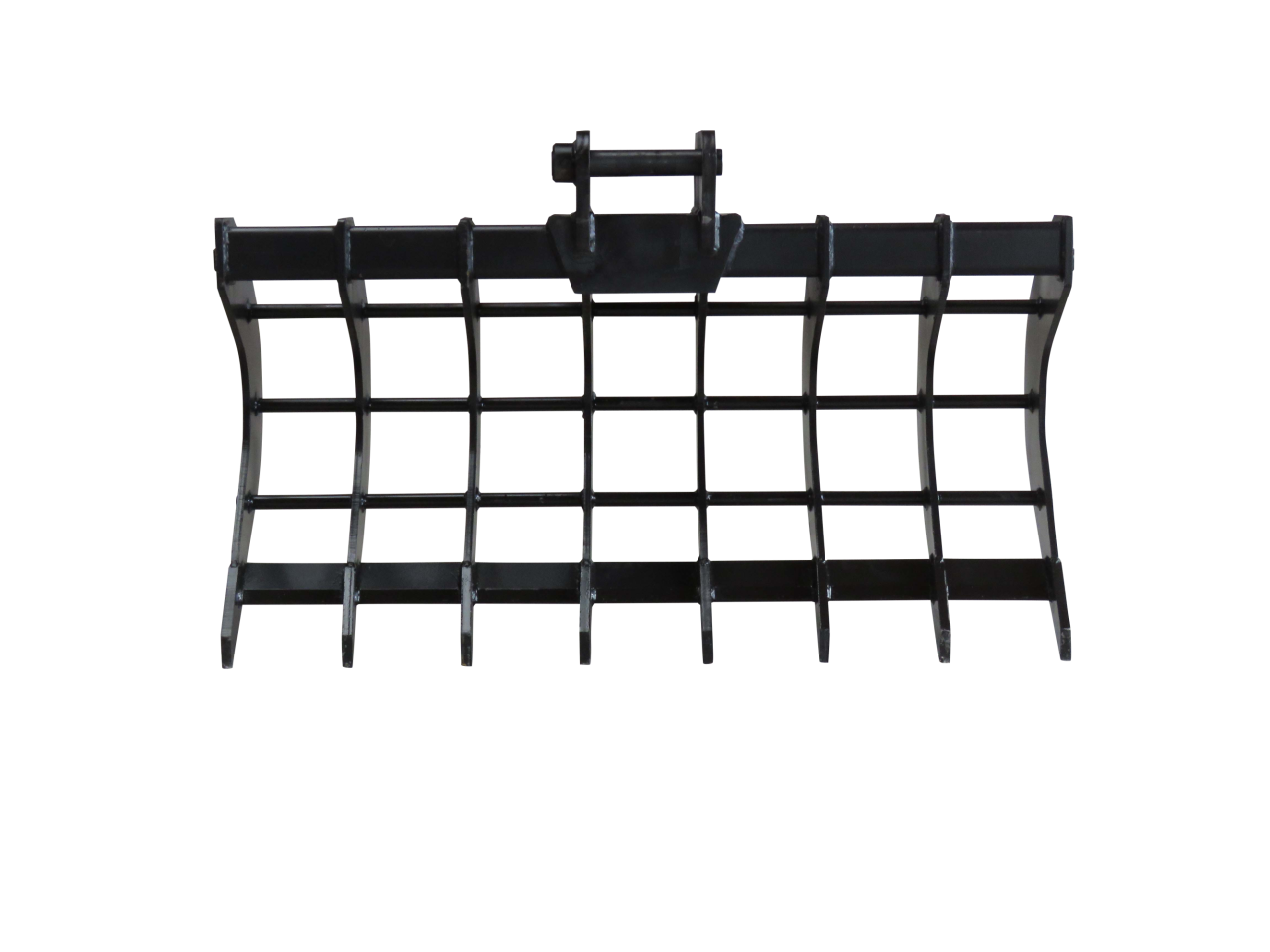

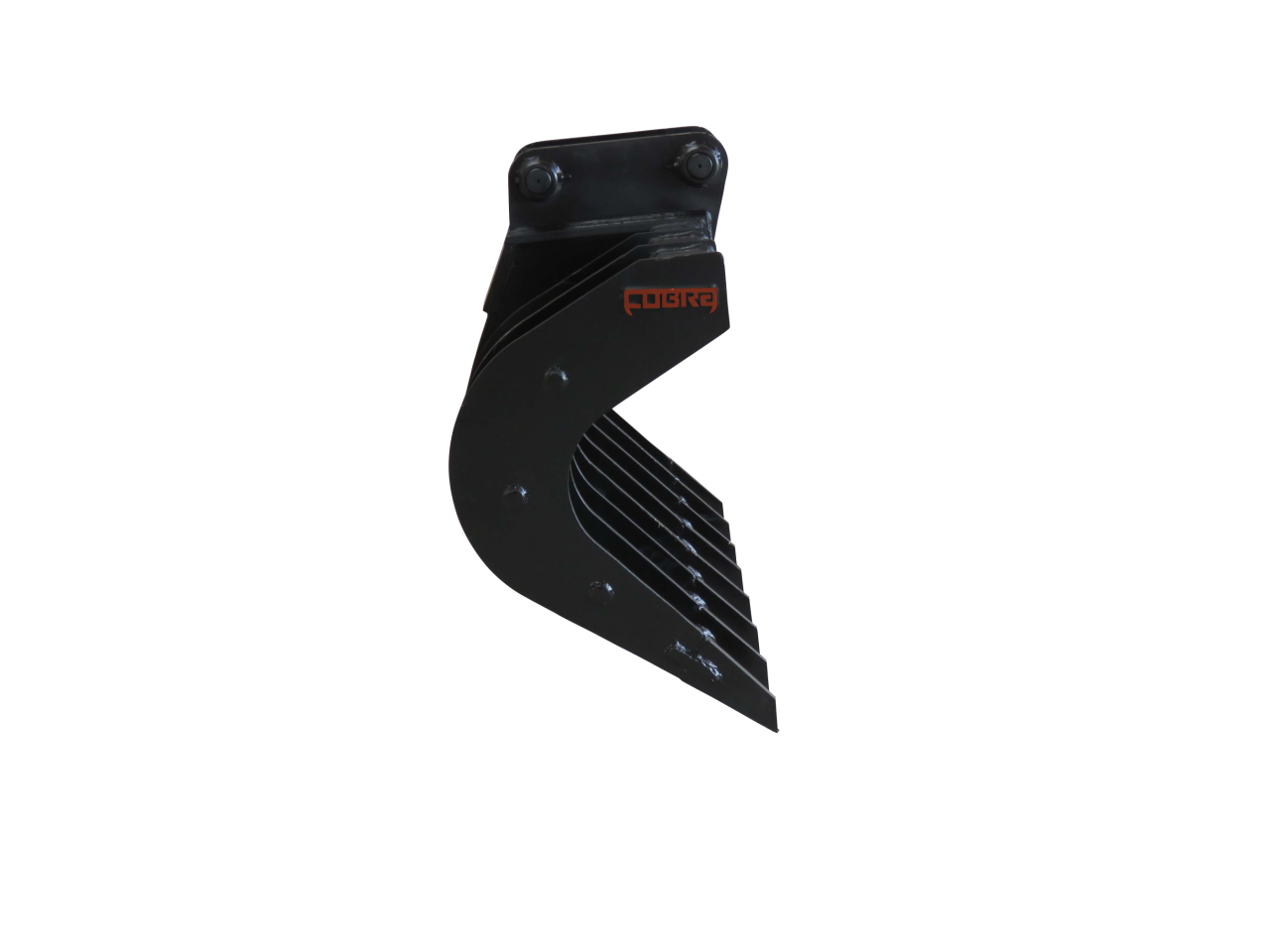

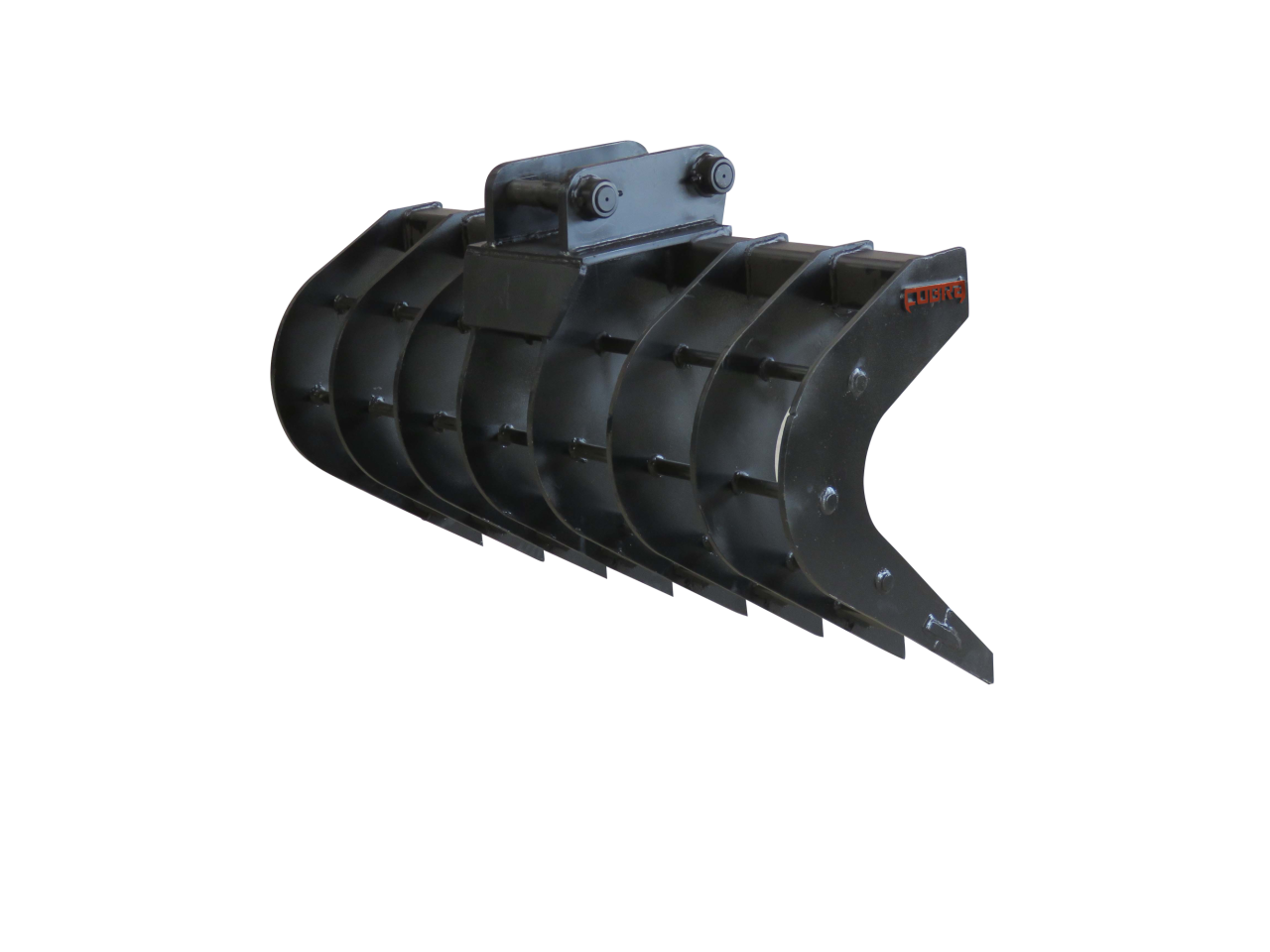

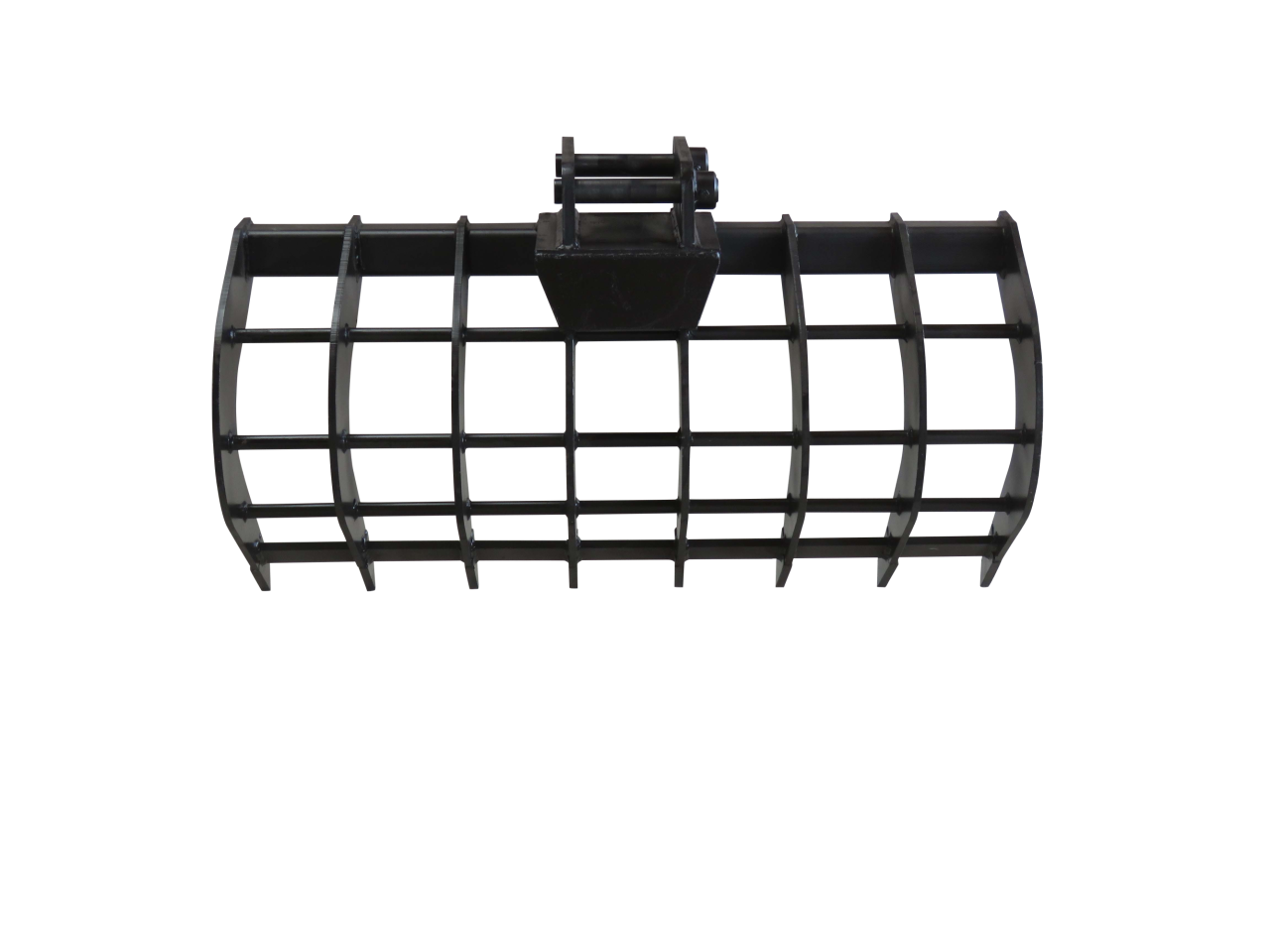

  • 6 9T 1600mm Curved Root Rake FS copy v2 6 9T 1600mm Curved Root Rake F copy 6 9T 1600mm Curved Root Rake S copy 6 9T 1600mm Curved Root Rake RS copy 6 9T 1600mm Curved Root Rake R copy

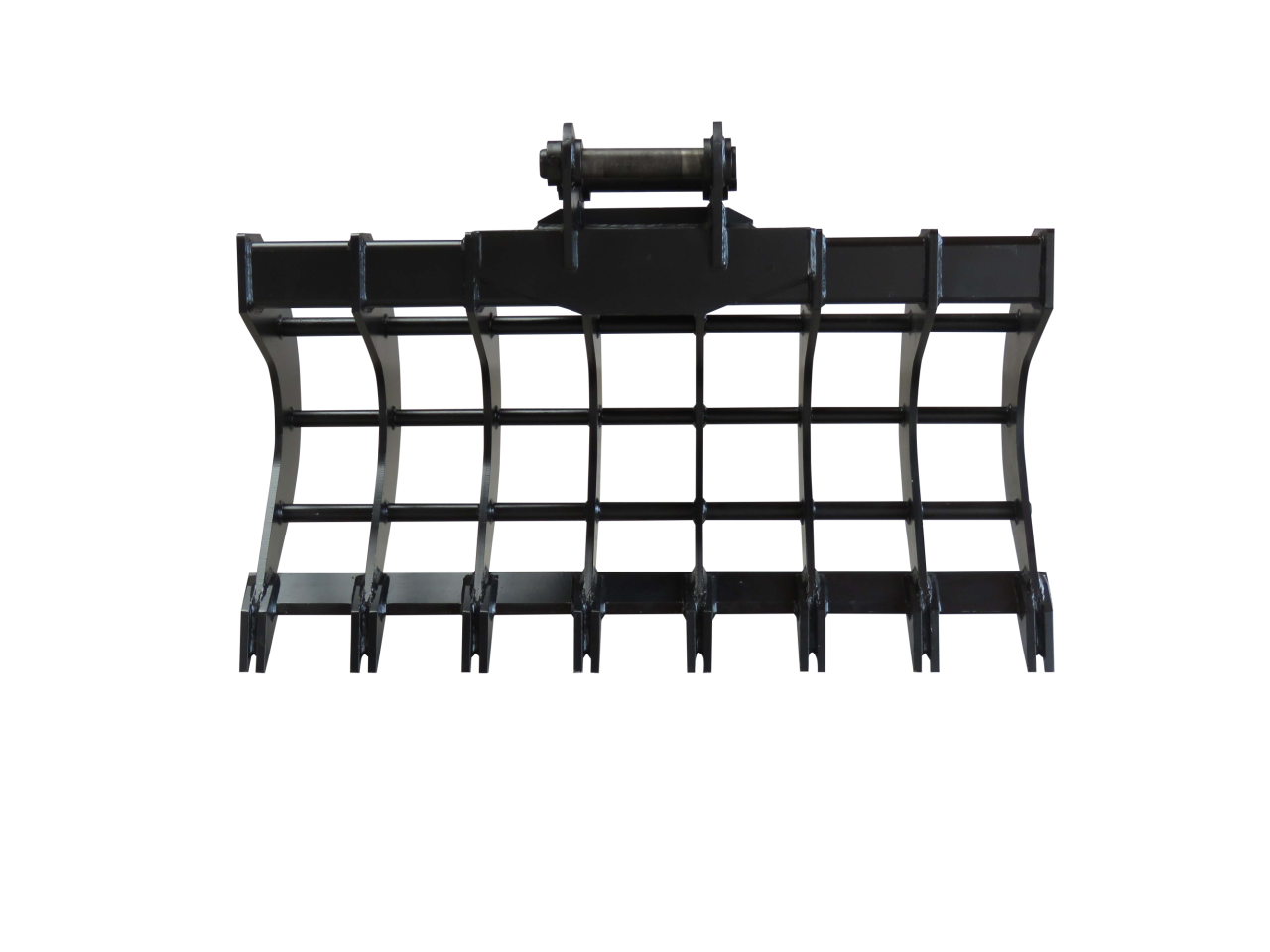

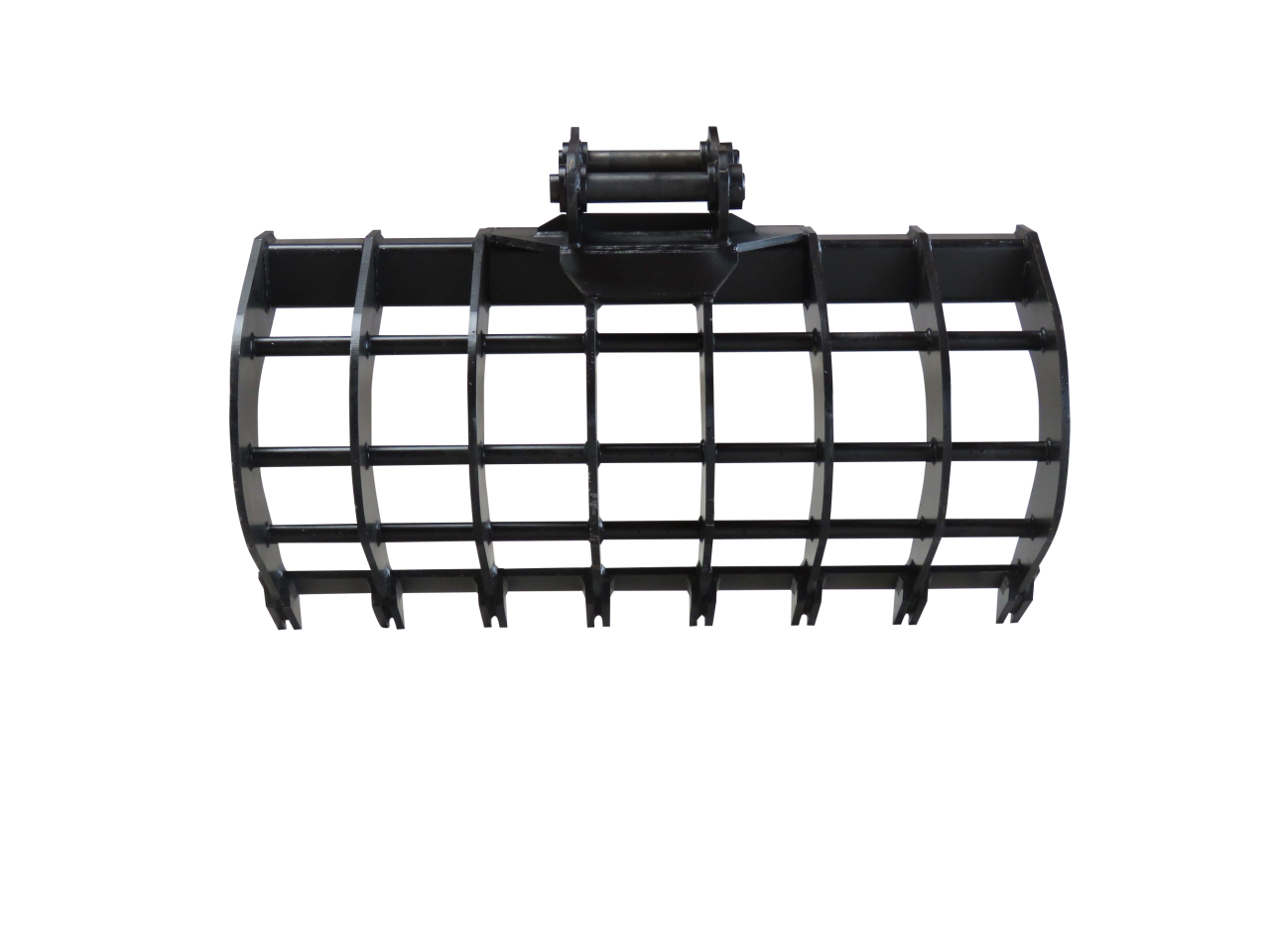

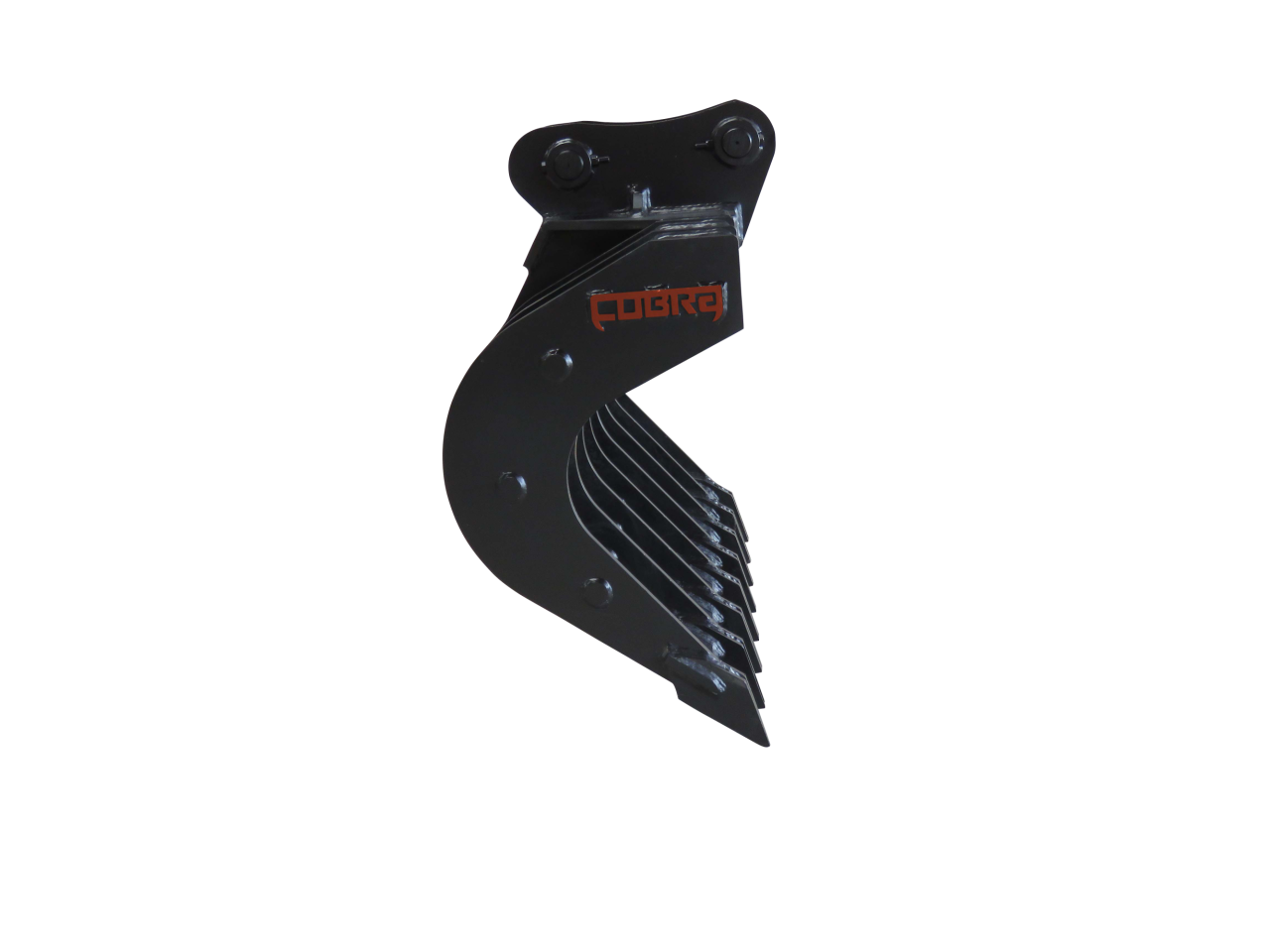

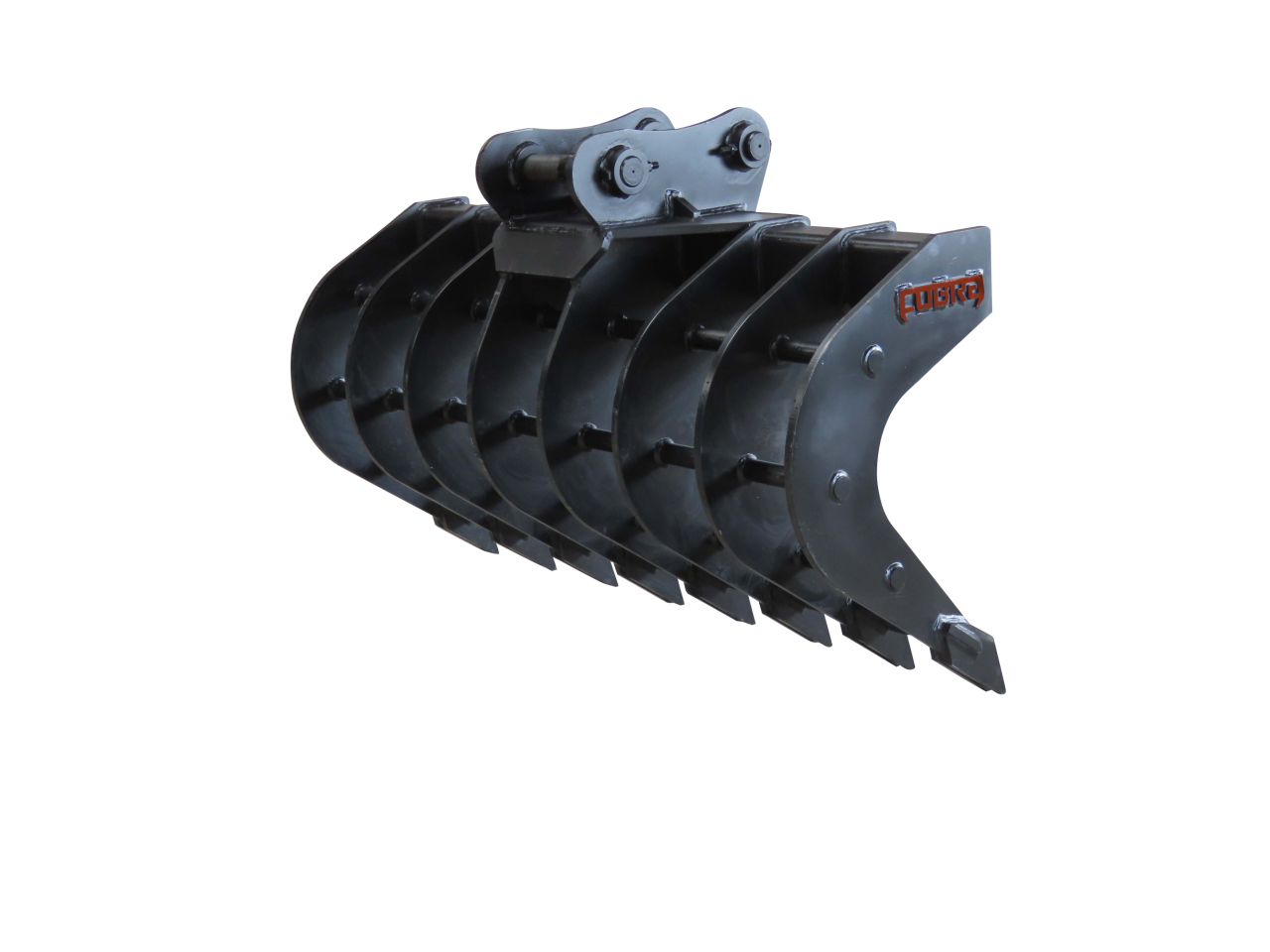

  • 12 16T 1800mm Curved Root Rake FS Recovered copy v2 12 16T 1800mm Curved Root Rake F copy 12 16T 1800mm Curved Root Rake S copy 12 16T 1800mm Curved Root Rake RS copy 12 16T 1800mm Curved Root Rake R copy

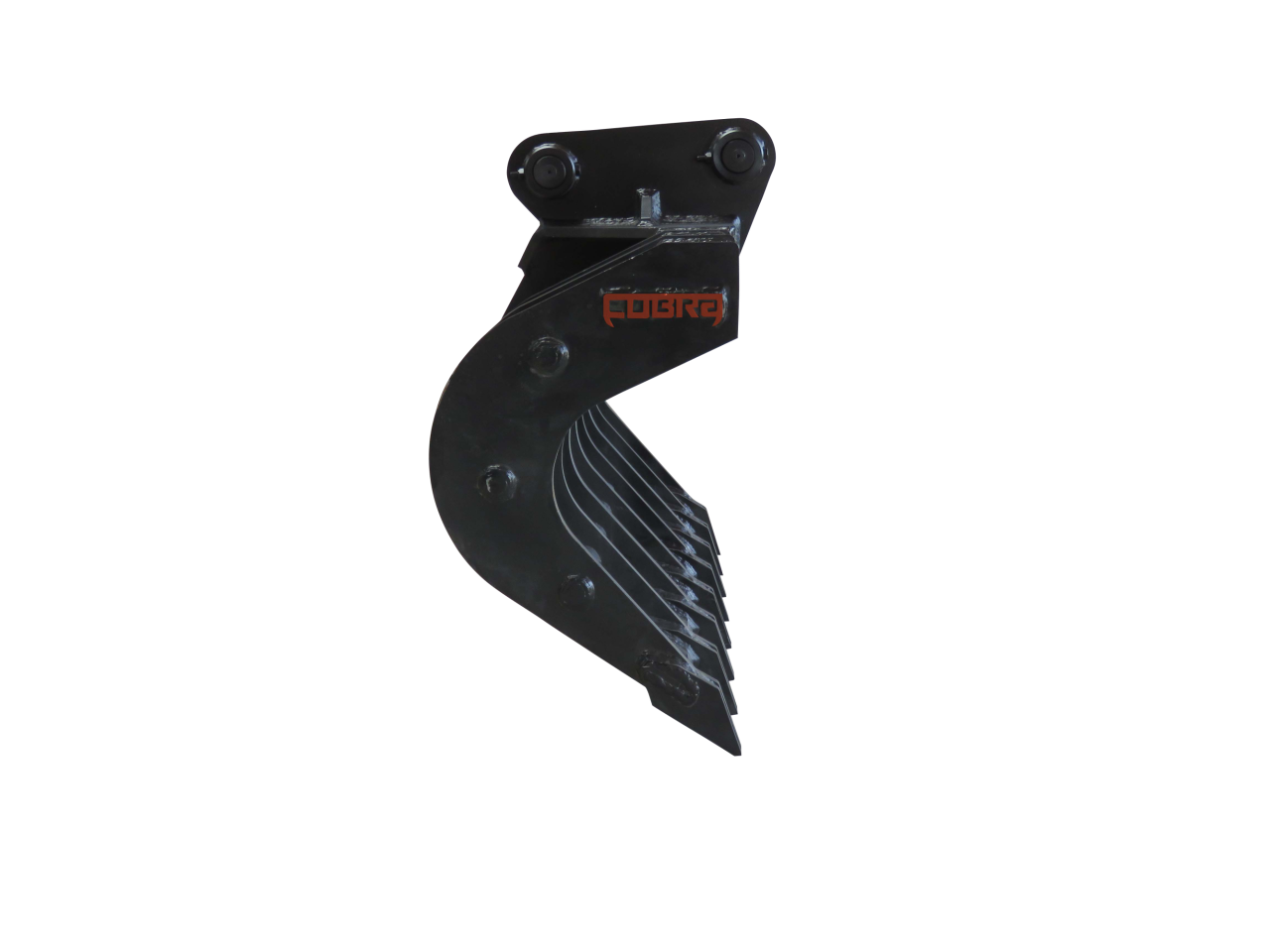

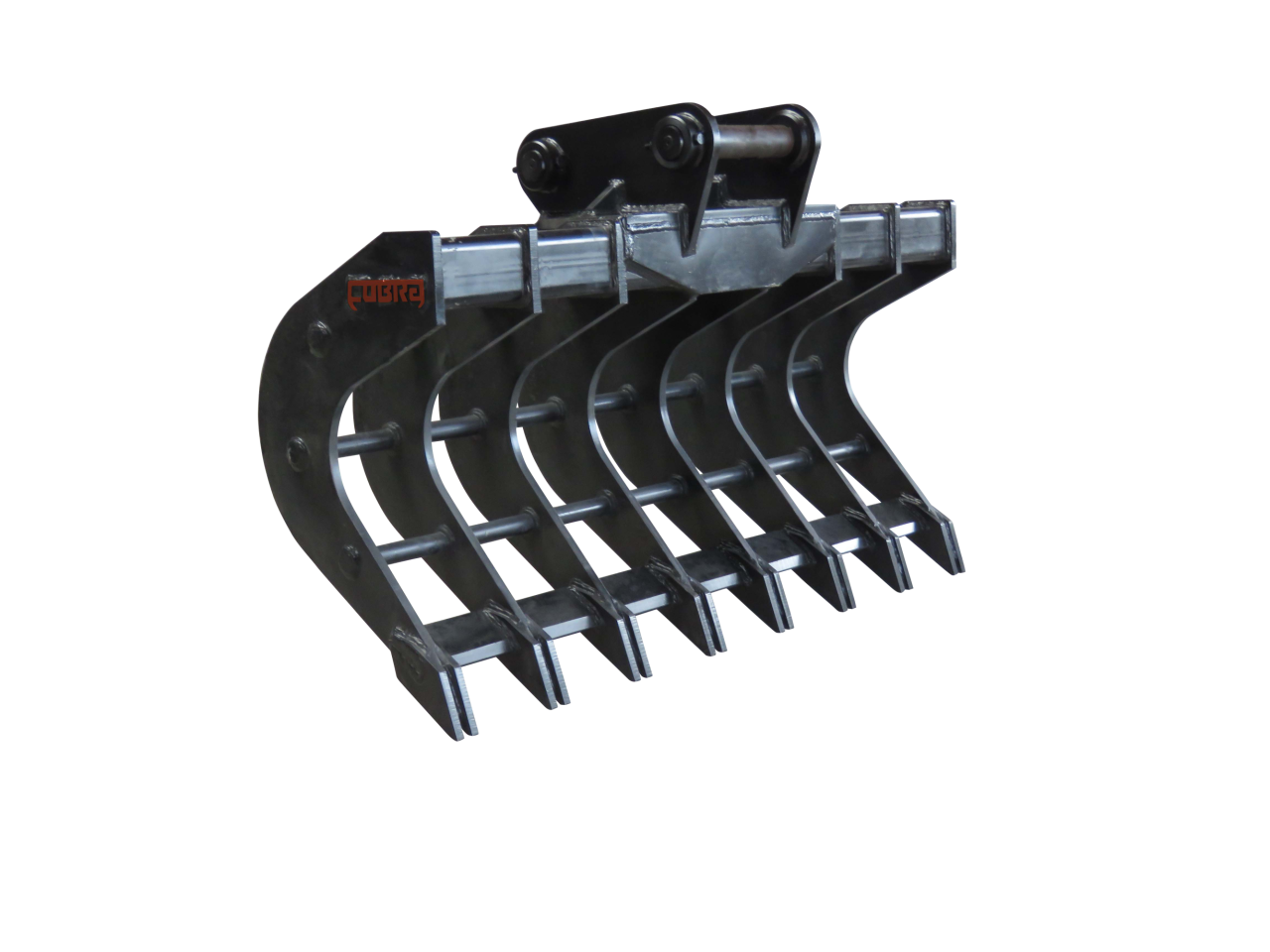

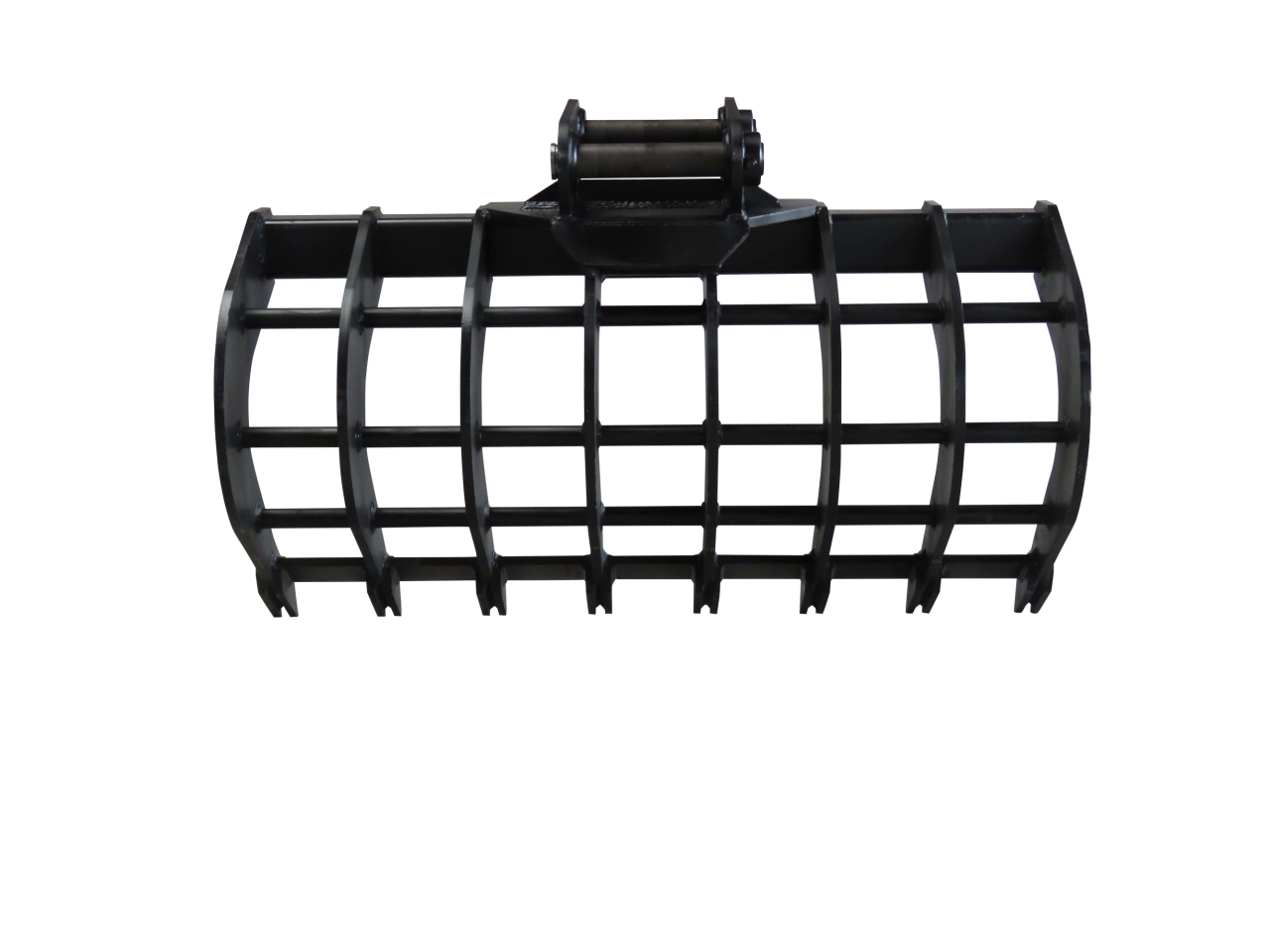

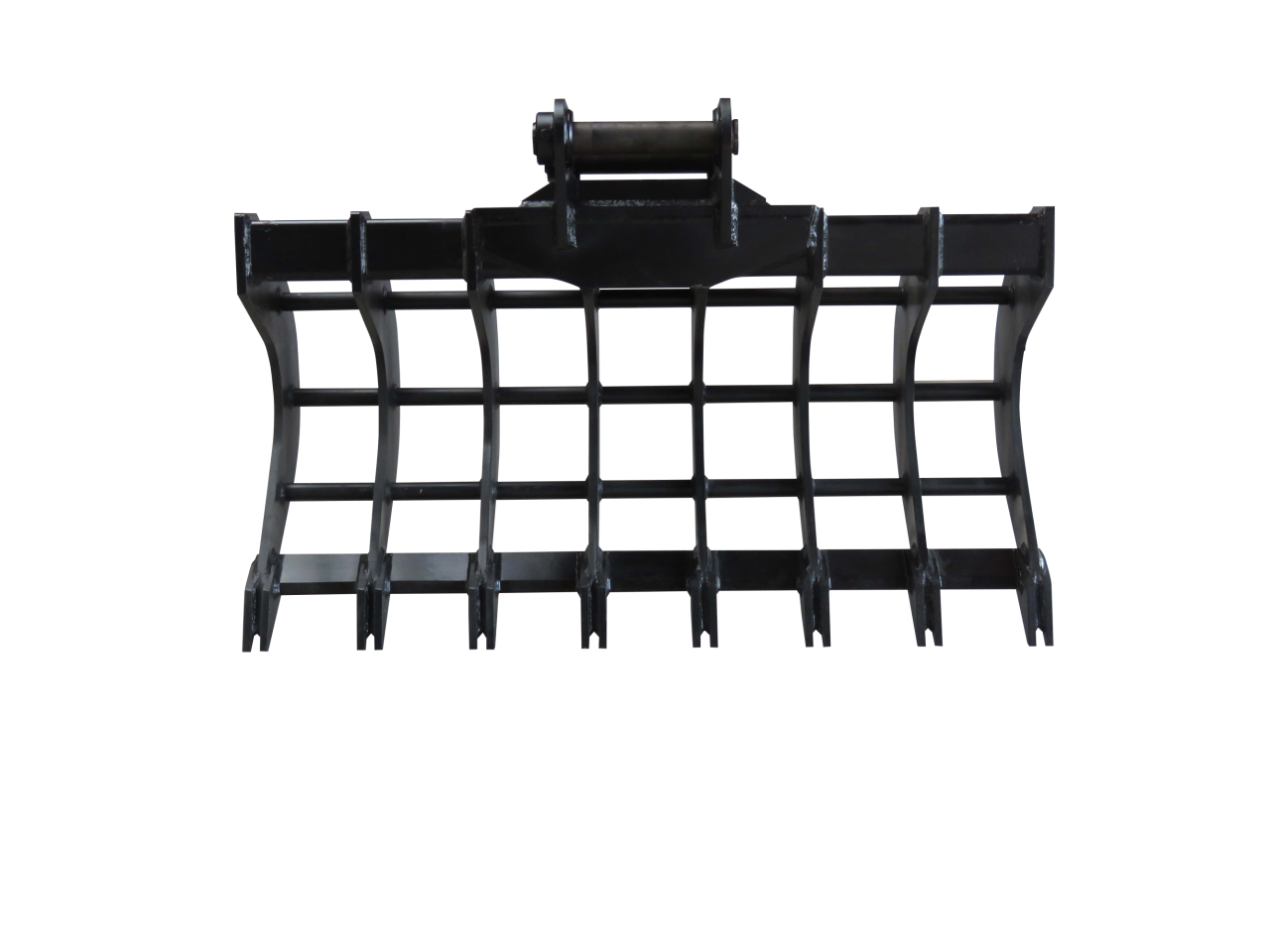

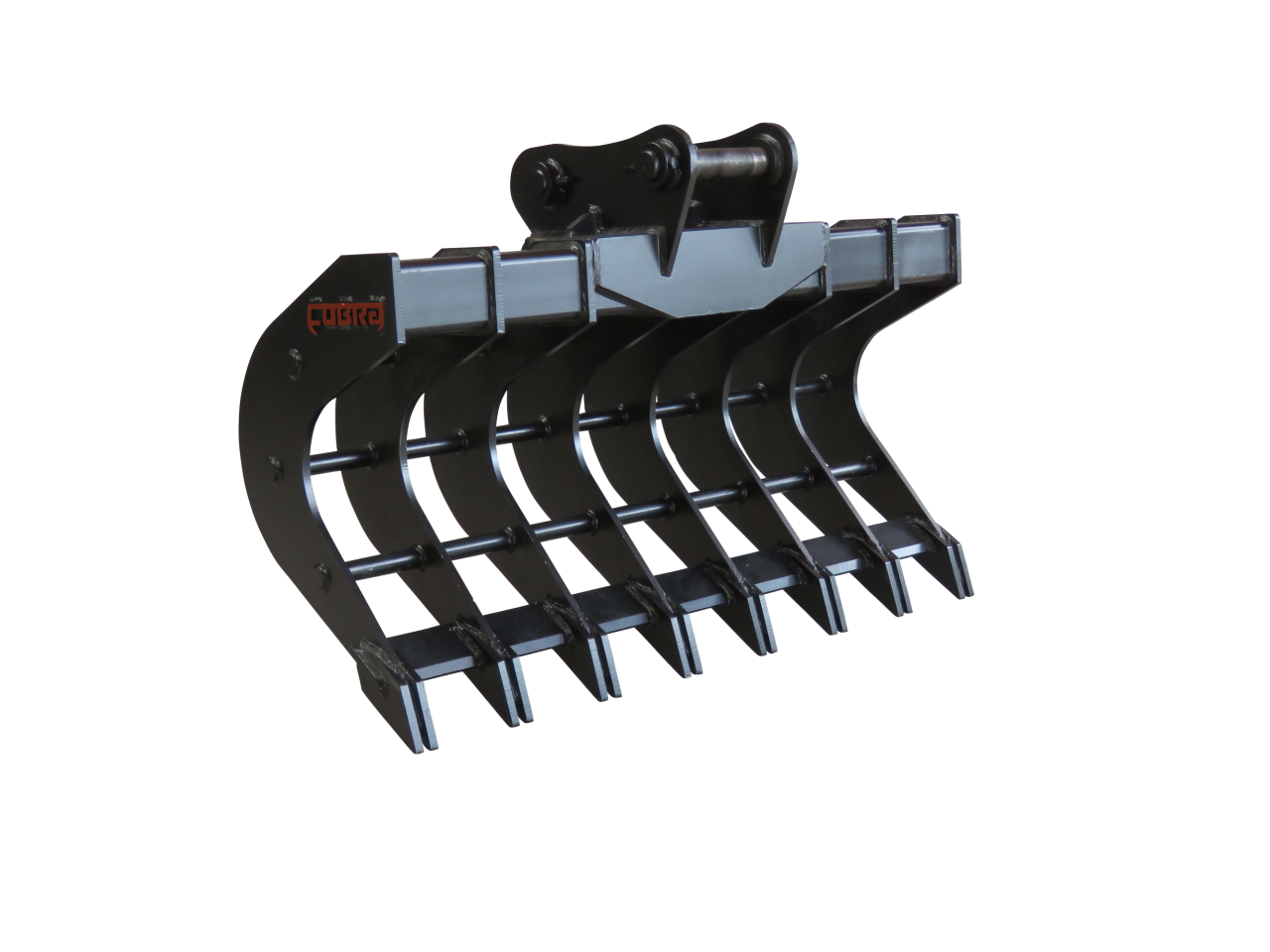

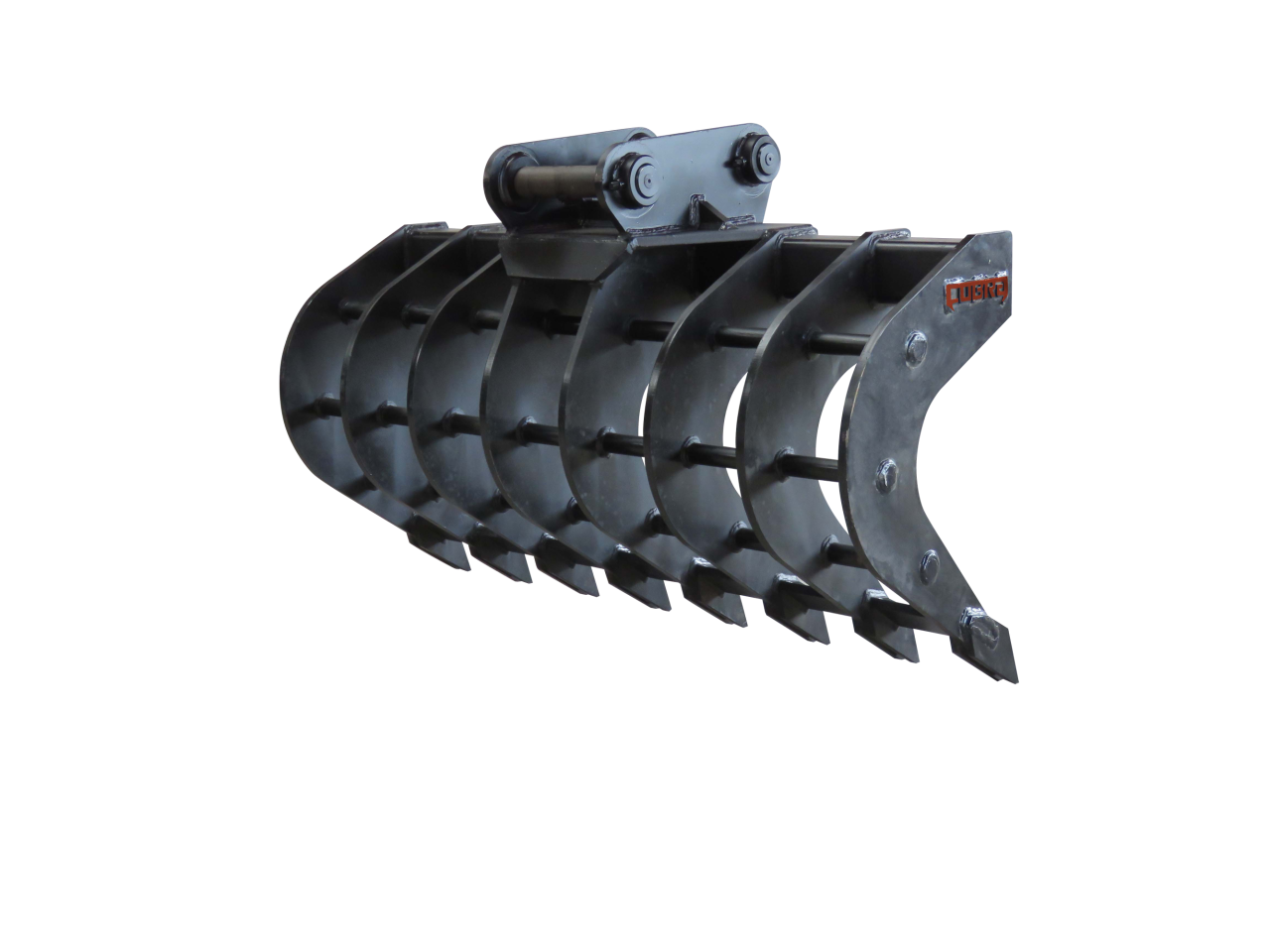

  • 16 25T 2000mm Curved Root Rake FS Recovered copy v5 16 25T 2000mm Curved Root Rake F copy v2 16 25T 2000mm Curved Root Rake S copy v2 16 25T 2000mm Curved Root Rake RS copy v2 16 25T 2000mm Curved Root Rake R copy v2

Brand Comparison

Cobra Curved Root Rake

Image Cobra 'Plus' Excavator Attachments
Product Features
Double Pronged Tips

400 Grade double pronged wear resistant tips to extend the life of the rake

Note this is only currently on 12T & 20T models
Medium Tensile Body

350 grade steel throughout the body
Rigid Design

Handles the uneven stress of large trees and rocks

Specifications

Please note that the specifications of our products are subject to change without notice, as we continuously strive to improve their performance and quality.

Carrier Machine 1.5-2.5T 2.5-3.9T 4-5.9T 6-9.9T 10-16T 16-25T
Width (mm) 1000 1200 1500 1600 1800 2000
Weight (kg) 61 98 244 296 617 890
Tyne Thickness (mm) 12 12 15  15  20  25
Tyne Amount 8 8 8 8 8 8
Tyne Gaps (mm) 130 155 200 210 235 260
